M27500-22TG2T14 Wire, M22759/18, Two Conductor, Shielded and Jacketed(ETFE), 22AWG — BOLTON SKU 55613.
About the M27500-22TG2T14 Aerospace Wire

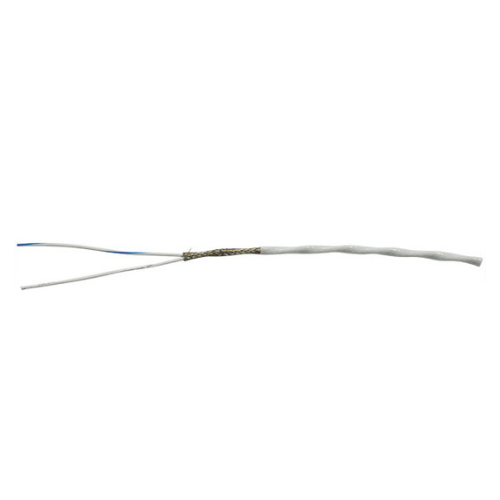

M27500-22TG2T14 is a multiconductor aerospace cable built to the M27500 / NEMA WC 27500 specification system, which defines shielded and jacketed cables assembled from qualified military component wires. Decoding the designation against the M27500 part-numbering guide: 22 is the conductor size (22 AWG); TG is the basic-wire code for AS22759/18 — tin-coated copper conductor with lightweight ETFE insulation rated 600 V and 150 °C; 2 is the number of conductors; T denotes a tin-coated copper round braid shield; and 14 denotes an extruded ETFE (Tefzel-type) outer jacket. The result is a compact, fluoropolymer-insulated twisted pair with overall shield and jacket, matching the construction stated in the item name. Cables of this construction are procured against the governing specification rather than a single manufacturer.
Key specifications
| Specification | M27500 / NEMA WC 27500 |
|---|---|
| Component wire | AS22759/18 — tin-coated copper, ETFE, 600 V, 150 °C |
| Conductor size | 22 AWG |
| Conductors | 2 |
| Shield | Tin-coated copper round braid (code T) |
| Jacket | Extruded ETFE (code 14) |
Typical applications
M27500 shielded pairs are used for signal and power distribution in airframe wiring, avionics installations and UAV electrical systems, where a qualified lightweight construction with EMI shielding is required. They are routine stock for aerospace harness manufacture and MRO rework.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
