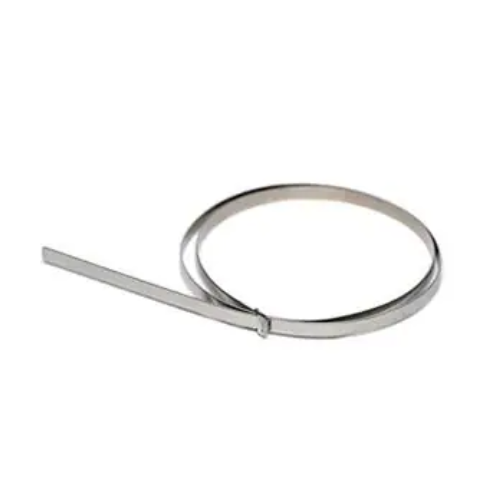

600-057-1 Micro Band, 3 mm, 22.4 mm, Pre-Coiled — BOLTON SKU 55883.
About the 600-057-1 Technical Component
600-057-1 is Glenair’s pre-coiled stainless-steel micro band, part of the Band-Master shield-termination system used to terminate cable-shield braid onto connector backshells and banding platforms. Distributor data lists the band at 3.05 mm width and 206.38 mm length; 600-057-1 is the pre-coiled version of the flat 600-057 band, coiled for easier handling and loading. In use, the band is placed over the dressed shield braid on the backshell banding porch and tensioned and locked with a Glenair banding tool — the 600-061 hand tool or 600-068 pneumatic tool are the listed companions — producing a permanent, 360-degree electromagnetic-interference-capable shield termination without soldering. Banded shield termination of this type is a standard technique in aerospace and defence harness manufacture, giving repeatable termination quality that does not depend on operator soldering skill and adding minimal weight to the harness.
Key specifications
| Type | Shield-termination micro band |
|---|---|
| Brand | Glenair (Band-Master system) |
| Material | Stainless steel |
| Band width | 3.05 mm (listed as 3 mm) |
| Band length | 206.38 mm |
| Form | Pre-coiled |
| Application tooling | Glenair 600-061 hand tool / 600-068 pneumatic tool |
Typical applications
Micro bands are consumed in harness manufacture and repair for terminating shield braid to backshells on avionics, defence and UAV interconnect assemblies. They are used wherever banded, solder-free 360-degree shield termination is specified.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
