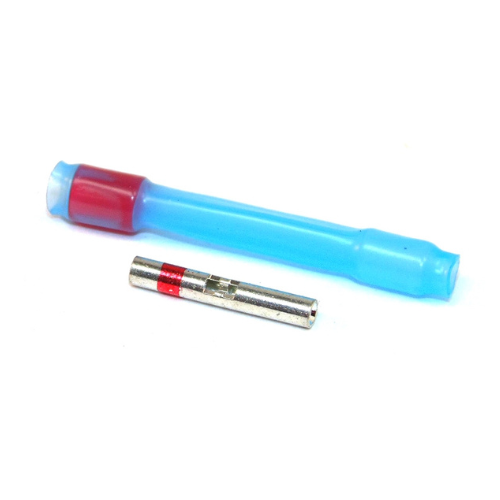

M81824/1-1 Splice, Crimp, Environmentally Sealed, RED (20- 26AWG) — BOLTON SKU 61129.
About the M81824/1-1 Technical Component
The M81824/1-1 is an in-line, environment-resistant permanent crimp splice qualified to SAE-AS81824/1, the slash sheet of the specification formerly designated MIL-S-81824/1. The parent specification covers environment-resistant permanent crimp-type splices fitted with a heat-shrinkable insulating sleeve and meltable environment seals, so that recovering the sleeve over a completed crimp produces an insulated, sealed joint in a single operation. The specification states that splices of this type are for use where the total temperature of the wire insulation does not exceed 150 °C. This dash number carries the red colour code, accepts conductors in the 26–20 AWG range and is a butt splice with two individual wire entries, one at each end. Barrel material, plating and sleeve compound vary between qualified manufacturers, so BOLTON confirms those details against the supplying source’s data at quotation rather than stating them here.
Key specifications
| Type | Permanent crimp butt splice, environment resistant, insulated |
|---|---|
| Governing specification | SAE-AS81824/1 (formerly MIL-S-81824/1) |
| Configuration | In-line butt splice, 2 wire entries (individual openings) |
| Wire size range | 26–20 AWG |
| Colour code | Red |
| Sleeve | Heat-shrinkable insulating sleeve with meltable environment seals |
| Temperature limit | For use where the total temperature of the wire insulation does not exceed 150 °C |
Typical applications
Sealed crimp splices in the 26–20 AWG band join signal and low-current conductors during harness build, repair and modification on aerospace and defence platforms. Because the recovered sleeve excludes liquids, they are specified for splices in wheel wells, engine bays and other zones exposed to hydraulic fluid, fuel or condensation. The red colour code lets a technician pick the correct wire-size splice from the bench without measuring, which is why they are a standard MRO loom-rework consumable.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
