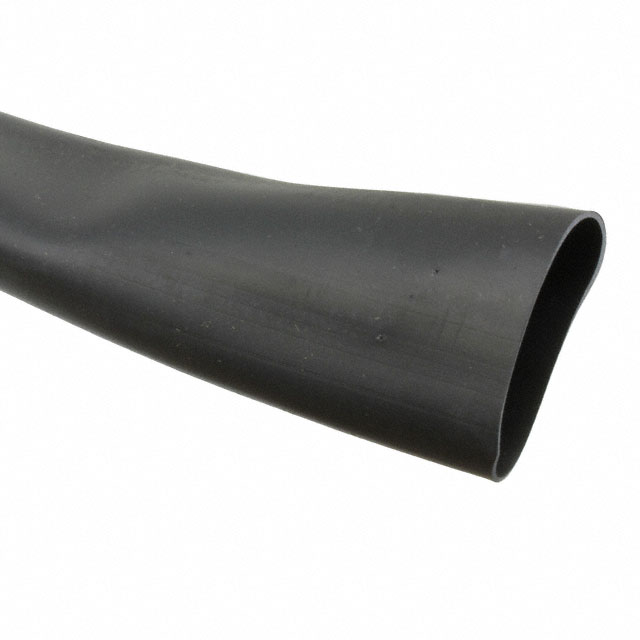

M23053/16-002-0 Tubing, Heat-Shrinkable, Thermofit DR-25 3/8″, Shrink Ratio 2:1, Elastomeric, Fluid & Abrasion Resistant — BOLTON SKU 61994.
About the M23053/16-002-0 Heat Shrink Tubing
M23053/16-002-0 is a heat-shrinkable tubing part number written against MIL-DTL-23053/16, the detail specification covering flexible, heat-shrinkable elastomeric polyolefin sleeving; the item designation also names the TE Connectivity (Raychem) Thermofit DR-25 family. Published data for the /16 slash sheet describes a tubing that resists aviation and diesel fuels, hydraulic fluids and lubricating oils, and that protects wires, solder joints, terminals, connections and components from those fluids as well as from abrasion and mechanical damage. It shrinks by 50% or more radially and 10% or less axially — the 2:1 ratio quoted in the item name — with a minimum shrink temperature of 135 °C and a continuous operating range of −75 °C to +120 °C. In the 3/8 in size the tubing is supplied at a minimum 0.375 in (9.6 mm) internal diameter and recovers to a maximum 0.187 in (4.8 mm) internal diameter, with a minimum recovered wall of 0.040 in (1.02 mm). Standard colour is black, matching the -0 colour code.
Key specifications
| Standard | MIL-DTL-23053/16 |
|---|---|
| Material | Flexible heat-shrinkable elastomeric polyolefin |
| Shrink ratio | 2:1 (minimum 50% radial, maximum 10% axial) |
| Continuous operating temperature | −75 °C to +120 °C |
| Minimum shrink temperature | 135 °C |
| Size (as supplied) | 3/8 in — expanded internal diameter minimum 0.375 in (9.6 mm) |
| Recovered internal diameter | Maximum 0.187 in (4.8 mm) |
| Minimum wall thickness (recovered) | 0.040 in (1.02 mm) |
| Colour | Black (standard) |
| Dielectric strength | 11.8 kV/mm (ASTM D 2671) |
| Flammability | Self-extinguishing |
Typical applications
At 3/8 in expanded diameter this size covers medium bundles and larger single leads, recovering to around 4.8 mm to grip the harness beneath. The fuel, hydraulic-fluid and oil resistance of the /16 material suits engine-bay, landing-gear and airframe wiring runs, ground-support equipment and vehicle looms. The same properties are used to protect solder joints, terminals and splices at points where abrasion and fluid exposure occur together.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Heat-Shrink & Sleeving.
