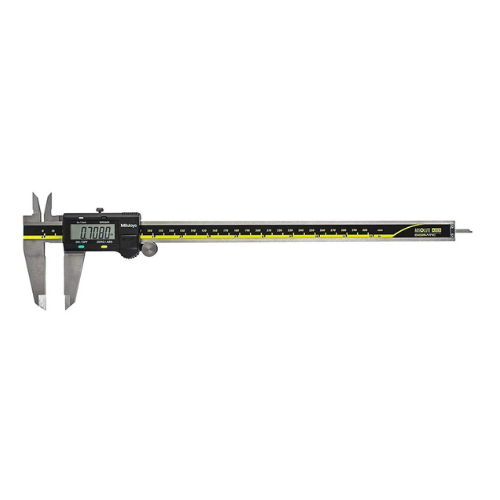

Mitutoyo 500-153-30 Digital Vernier Caliper 0-300 mm — BOLTON SKU 50436.
About the Mitutoyo 500-153-30 Digital Vernier Cali Technical
The Mitutoyo 500-153-30 is a digital vernier caliper with a 0-300 mm measuring range, twice the span of the common 150 mm workshop caliper. The longer beam reaches dimensions — flange widths, plate lengths, large bore diameters, bolt-circle spans — that would otherwise need a rule or a large-frame instrument, while keeping the four caliper measurement modes of external jaws, internal jaws, depth rod and step face. Working at 300 mm places more weight on technique than a short caliper does: a longer beam is more susceptible to jaw deflection and to error if the part is not held square to the jaws, so light and consistent gauging pressure matters. The reading is shown digitally and can be zeroed at any position for comparative measurement. Resolution, accuracy, ingress protection and output options for the Mitutoyo 500-153-30 Digital technical component are given in the manufacturer’s product sheet issued with the quotation.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer | Mitutoyo |
| Order number | 500-153-30 |
| Instrument type | Digital vernier caliper |
| Measuring range | 0-300 mm |
| Measurement modes | External, internal, depth, step |
| Readout | Digital (LCD) |
| BOLTON SKU | 50436 |
Typical applications
A 300 mm caliper suits fabrication and sheet-metal shops, larger machined housings, pipe and flange work, and goods-inward checks on bar, plate and extruded stock. It also covers spans on assembled equipment — bracket spacing, panel apertures, mounting-hole centres — where a 150 mm caliper simply will not reach, which is why it is usually held as the second caliper size in an inspection kit.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
