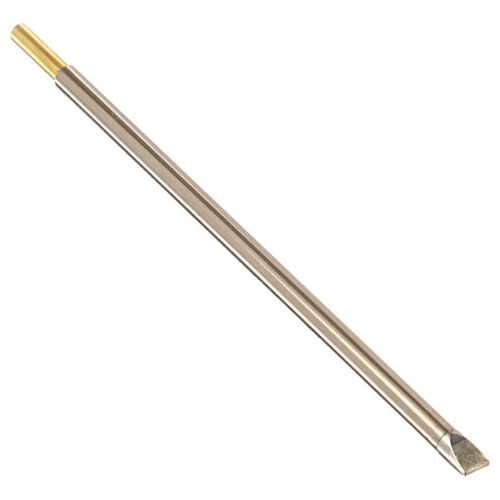

METCAL STTC-817 SOLDERING CARTRIDGE FOR CERAMIC AND HIGH THERMAL DEMAND APPLICATIONS LARGE CHISEL 5.0MM TIP SIZE 7.6MM T — BOLTON SKU 50789.
About the STTC-817 Soldering Equipment
The METCAL STTC-817 sits in the 800 series of the STTC cartridge range, the highest of the three STTC temperature classes at a nominal 450 °C — the class Metcal recommends where the joint pulls heat away faster than a standard cartridge can replace it, such as ceramic substrates and other high thermal demand work. Its working face is a large chisel measuring 5.0 mm across with a 7.6 mm tip length: a short, heavy geometry that puts a broad contact area and a large thermal mass directly against the joint, trading fine access for heat delivery. Because the heater is integral to the cartridge, changing to an STTC-817 changes both the temperature class and the tip shape in one part. Distributor listings give the cartridge for the MX-500, MX-5000 and MX-5200 systems, used with the MX-RM3E or MX-H1-AV hand-piece.
Key specifications
| Type | Soldering tip cartridge |
|---|---|
| Series | Metcal STTC, 800 series (STTC-8xx) |
| Nominal series temperature | 450 °C |
| Tip geometry | Large chisel |
| Tip size | 5.0 mm |
| Tip length | 7.6 mm |
| Intended use | Ceramic and high thermal demand applications |
| Compatible systems | Metcal MX-500, MX-5000, MX-5200 |
| Compatible hand-pieces | MX-RM3E, MX-H1-AV |
Typical applications
A 5.0 mm chisel in the 450 °C class is the tool reached for on ground planes and copper pours, coaxial and shield terminations, heavy power connectors and busbar-style joints, where a fine tip would simply stall. In avionics and UAV electronics shops it is typically kept alongside finer cartridges so one bench can move between chassis-level terminations and board-level work. It also suits ceramic-substrate assemblies, where the substrate itself acts as a heat sink.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Soldering Irons Stations.
