METCAL STTC-117 STTC SERIES SOLDERING CARTRIDGE FOR MOST STANDARD APPLICATIONS 775°F MAXIMUM TIP TEMPERATURE LARGE CHISE — BOLTON SKU 50788.
About the STTC-117 Soldering Equipment

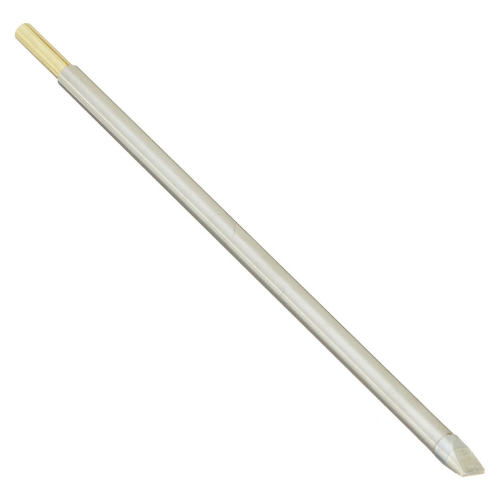

The METCAL STTC-117 is a soldering tip cartridge from Metcal’s STTC series, the standard cartridge family for the MX-500, MX-5000 and MX-5200 SmartHeat soldering and rework systems. STTC cartridges combine tip and heater in one replaceable assembly; SmartHeat technology automatically adjusts power to the thermal demand of each joint, with no operator temperature setting or calibration required. STTC-1xx part numbers form Metcal’s 700 series — nominally 390 °C, with a 775 °F maximum tip temperature as stated in this product’s designation — and Metcal recommends the 700 series for the majority of soldering applications, which matches the cartridge’s stated intent for most standard applications. This part carries a large chisel tip geometry, suited to through-hole joints, larger pads and general production soldering where a wide contact face improves heat transfer. STTC cartridges can be used with both leaded and lead-free solder processes.
Key specifications
| Type | Soldering tip cartridge |
|---|---|
| Series | Metcal STTC, 700 series (STTC-1xx) |
| Maximum tip temperature | 775 °F (per designation) |
| Nominal series temperature | 390 °C (700 series) |
| Tip geometry | Large chisel |
| Intended use | Most standard soldering applications |
| Compatible systems | Metcal MX-500, MX-5000, MX-5200 series |
Typical applications
STTC cartridges are consumed on production and rework benches in electronics manufacturing, avionics and UAV electronics assembly, and workshop repair of wired assemblies. Chisel profiles in this size range cover the bulk of through-hole and general board-level soldering tasks.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
