Description
MX-H1-AV / Advanced Hand-Piece for MX System — BOLTON SKU 50793.
About the MX-H1-AV Soldering Equipment

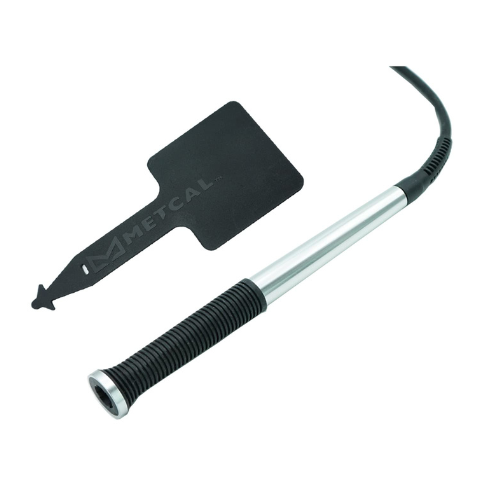

The METCAL MX-H1-AV is Metcal’s Advanced hand-piece for the MX-5000 and MX-5200 series systems. Its data sheet describes it as a general-purpose tool for single-task soldering, touch-up soldering, surface-mount device (SMD) rework and pad clean-up, with an ergonomic, cool-to-the-touch feel. It accepts Metcal STTC and SMTC tip cartridges — in the Metcal architecture the cartridge, not the hand-piece, fixes the working temperature, because the heater is built into the cartridge itself. Metcal STTC cartridge listings name the MX-H1-AV (alongside the MX-RM3E) as the hand-piece used with MX-500, MX-5000 and MX-5200 systems. The hand-piece is supplied with a 178 cm (70 in) cable and a cartridge removal pad, and is compatible with the MX-W1AV TipSaver work stand. No tip or cartridge is included, so the required geometry and temperature series are ordered separately.
Key specifications
| Type | Soldering / rework hand-piece with cable |
|---|---|
| Compatible systems | Metcal MX-5000 and MX-5200 series (data sheet) |
| Cartridge compatibility | Metcal STTC and SMTC cartridges |
| Work stand | Compatible with MX-W1AV TipSaver |
| Cable length | 178 cm (70 in) |
| Supplied with | Cartridge removal pad; no tip/cartridge included |
| Typical tasks | Single-task soldering, touch-up, SMD rework, pad clean-up |
Typical applications
MX hand-pieces equip electronics production and rework benches in avionics, UAV and general electronics environments. As the cartridge interface of the MX system, one hand-piece covers the full STTC/SMTC geometry range, with the operator changing cartridges rather than tools between tasks.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
