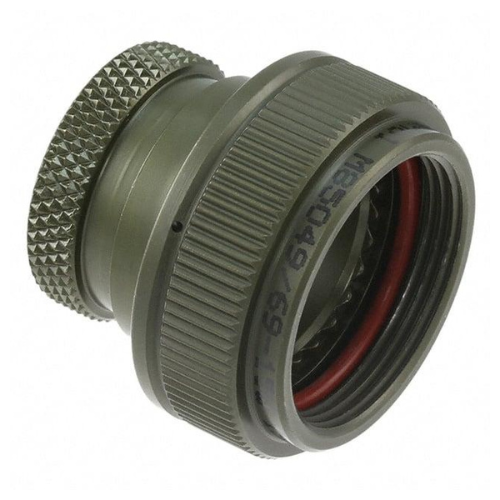

M85049/69-15W Shrink Boot Adapter, Olive Drab Cadmium — BOLTON SKU 50981.
About the M85049/69-15W Backshell
The M85049 prefix identifies connector accessories qualified to MIL-DTL-85049, the military specification covering backshells, adapters and strain-relief hardware for circular electrical connectors, and the /69 slash sheet within that system covers shrink boot adapters. A shrink boot adapter attaches to the rear of a connector and provides a defined profile over which a heat-shrinkable boot is recovered, protecting and supporting the wire-bundle transition out of the connector. The product title identifies an olive drab cadmium plated finish, corresponding to the W finish code in the part number, and the item is recorded under the Amphenol brand. The dash number in the designation ties the adapter to a specific mating shell size; exact fitment against the target connector series is confirmed from the slash-sheet tables at quotation stage.
Key specifications
| Type | Shrink boot adapter (connector accessory) |
|---|---|
| Specification family | MIL-DTL-85049 (M85049/69 slash sheet) |
| Designation | M85049/69-15W |
| Finish | Olive drab cadmium (finish code W) |
| Brand | Amphenol (as recorded in the item master) |
Typical applications
Shrink boot adapters are used in aerospace and defence wire-harness assembly to terminate heat-shrink boots at the connector rear, sealing and strain-relieving the cable transition. They are routine fitment items in harness build, UAV integration and MRO connector rework.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
