Description
222K132-25/225-0 Molded Part, Heat-Shrinkable, 90degree Boot, Fluid Resistant Elastomeric, 150 °C, Fit Size 13 AND 15 Ba — BOLTON SKU 52211.
About the TE Connectivity 222K132-25/225-0 90-Degr Heat Shrink

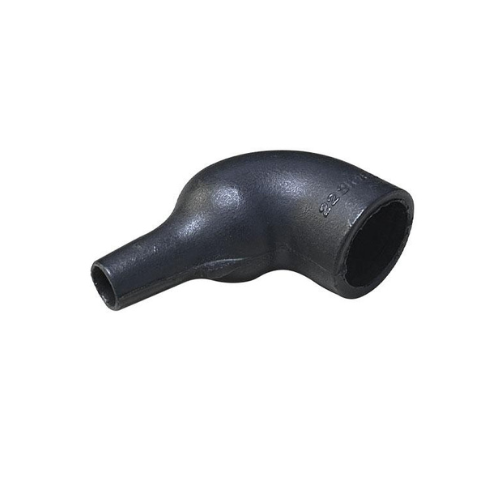

The 222K132-25/225-0 is a moulded heat-shrinkable boot from the TE Connectivity (Raychem) 222K range. It is a right-angle transition part: the boot recovers over the rear of a circular-connector adapter at one end and onto the cable at the other, turning the harness through 90° while sealing the entry and taking mechanical strain off the termination. The material is a fluid-resistant elastomer, as recorded in the part designation, and manufacturer and distributor listings for this variant give a black colour, an adhesive-lined construction and an operating range of −75 °C to +150 °C — the 150 °C figure that also appears in the item title. The adhesive flows as the boot recovers and forms the environmental seal against the adapter and the cable jacket. Per the designation this variant covers fit sizes 13 and 15, and the lipped profile locates the boot in the adapter’s retention groove.
Key specifications
| Type | Moulded heat-shrinkable boot, right angle (90°), lipped |
|---|---|
| Manufacturer | TE Connectivity (Raychem) |
| Part number | 222K132-25/225-0 |
| Material | Fluid-resistant elastomer |
| Lining | Adhesive-lined |
| Colour | Black |
| Operating temperature | −75 °C to +150 °C |
| Fit size | 13 and 15 (per designation) |
Typical applications
Right-angle boots are fitted where the harness has to leave the connector immediately — a bulkhead with no room to sweep the cable, a panel receptacle close to structure, or an equipment tray where the loom must run parallel to the face. Sealing at that turn matters most on exposed runs: airframe and UAV harnesses, ground-support equipment and vehicle looms subject to fuels, hydraulic fluid and weather. Because the boot is adhesive-lined, the result is a permanent sealed termination rather than a re-enterable one.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Backshells & Strain Relief.
