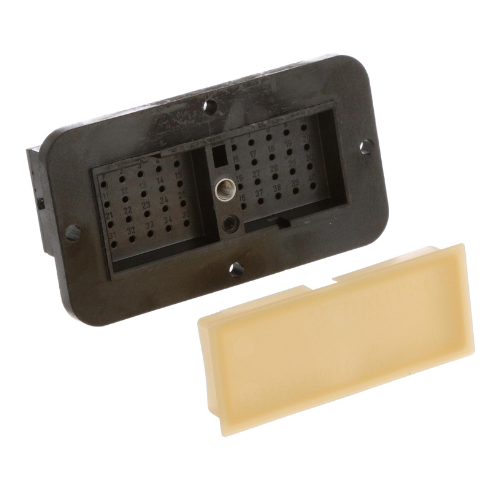

TE Connectivity DEUTSCH DRC Series Connector, Male, 40-Way — BOLTON SKU 53365.
About the TE Connectivity DEUTSCH DRC Series Conne Connector
This TE Connectivity DEUTSCH connector is a DRC series receptacle housing based on the DRC12-40PB, configured for 40 size 16 pin contacts arranged in four rows, with the B key arrangement, a black body and a red seal. DRC series connectors are high-density rectangular connectors designed for environments where moisture, dirt and rough terrain would contaminate or damage an unprotected connection. The housing is moulded in a high-performance thermoplastic and includes an integral flange so it can be mounted through a bulkhead as an environmentally sealed pass-through. The series is rated as shock and vibration resistant and meets the standard specifications applied across the heavy-duty DEUTSCH product line. Contacts are supplied separately and crimped to the conductor before insertion. The housing mates with the corresponding DRC16-40SB and DRC18-40SB socket plugs.
Key specifications
| Series | DEUTSCH DRC (TE Connectivity) |
|---|---|
| Positions | 40, arranged in 4 rows |
| Contact size | Size 16 |
| Contact gender | Housing for male pin contacts |
| Key arrangement | B key |
| Mounting | Integral flange, bulkhead mounting |
| Body | High-performance thermoplastic, black |
| Seal colour | Red |
| Mating plugs | DRC16-40SB and DRC18-40SB |
Typical applications
A 40-way size 16 sealed receptacle is used as a bulkhead interface on machinery and vehicle systems where a large number of signal and low-current power circuits cross a panel in one connector — control modules, engine and powertrain harness breakouts, hydraulic and body control interfaces, and equipment enclosures on off-road and ground support platforms. The B key arrangement is used to prevent cross-mating where several identical 40-way connectors sit close together on the same panel.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
