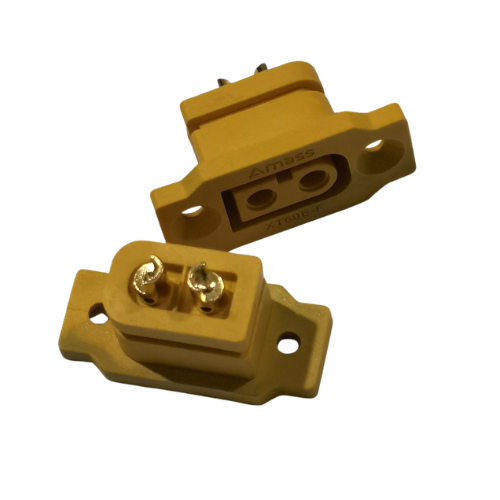

XT60E-F Connector, Panelmount XT60, Female Solder — BOLTON SKU 53377.
About the XT60E-F Panel-Mount Connector, Female, S Soldering
XT60E-F is the panel-mount female connector in the XT60 family of two-pole DC power connectors, a format originated by AMASS and used widely for battery and power distribution in UAV, RC and light electric systems. The connector carries gold-plated brass bullet contacts in a nylon housing (UL94 V-0 flammability rating) and is designed for solder termination, with 12 AWG the manufacturer-recommended wire size. Distributor data for the AMASS part lists a 30 A continuous rating with 60 A instantaneous capability at up to 500 V, and an operating temperature range of −20 °C to +120 °C. The E-series body adds mounting provision so the connector can be fixed through an enclosure or airframe panel with screws, and it intermates with standard XT60 male plugs (AMASS XT60U-M).
Key specifications
| Type | DC power connector, panel mount |
|---|---|
| Family | XT60 |
| Gender | Female (socket) |
| Positions | 2 |
| Contacts | Gold-plated brass |
| Housing | Nylon, UL94 V-0 |
| Current rating | 30 A continuous / 60 A instantaneous (AMASS data) |
| Voltage rating | Up to 500 V (AMASS data) |
| Termination | Solder; 12 AWG recommended |
| Operating temperature | −20 °C to +120 °C |
Typical applications
XT60 panel-mount connectors are used on battery bays, chargers, power-distribution panels and test equipment in UAV integration, workshop and lab settings. They provide a polarised, high-current DC interface for removable battery and power connections.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
