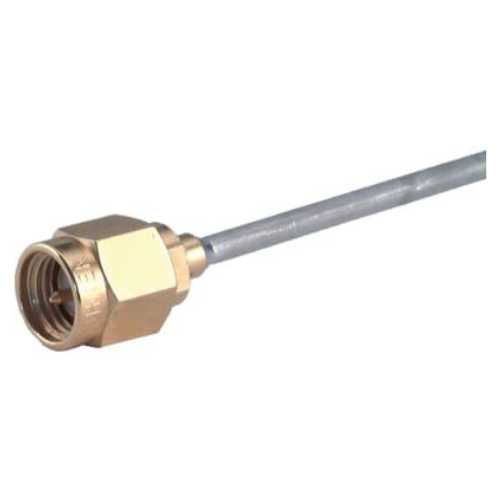

SMA Male Connector 11_SMA-50-2-5/111_NE — BOLTON SKU 53516.
About the SMA Male Connector 11_SMA-50-2-5/111_NE Rf Adapter
SMA is a sub-miniature coaxial interface built around a threaded coupling nut, and it is one of the most widely specified RF interfaces in compact equipment. This item is the male half — the plug, carrying the centre pin and the rotating coupling nut that draws the pair together. The threaded coupling is the defining characteristic: it is torqued rather than pushed or twist-locked, which gives a repeatable, mechanically secure joint that resists vibration, at the cost of taking longer to mate than a bayonet or push-on interface. The 50 in the designation identifies the 50 ohm system this SMA Male Connector rf adapter is built for, which is the impedance used across radio, test and data RF work. The remaining elements of the full part number 11_SMA-50-2-5/111_NE identify the cable group and finish, so the connector should always be ordered against the exact cable it will terminate. Confirm the intended cable reference on your RFQ.
Key specifications
| Full designation | 11_SMA-50-2-5/111_NE |
|---|---|
| Interface | SMA |
| Gender | Male (plug) |
| Nominal impedance | 50 ohm |
| Coupling mechanism | Threaded |
Typical applications
SMA plugs of this type terminate coaxial jumpers and internal harnesses inside radios, antennas, RF test sets and instrumentation, where the connection is torqued once at build and then expected to stay put. The threaded interface makes it a common choice for equipment exposed to vibration or handling. Because the cable group is embedded in the part number, this reference should be paired with its matching cable rather than substituted by SMA gender alone.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
