Description

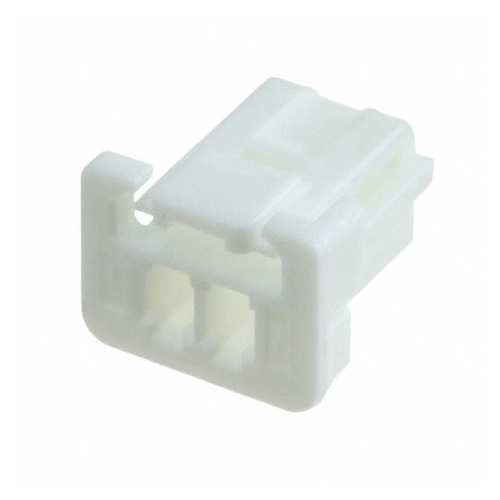

5601230200 Rectangular Receptacle Housing, 2.00 mm, 2-Way, White — BOLTON SKU 53806.
About the 5601230200 Rectangular Receptacle Housin Rectangular
A housing is the moulded insulator, not the complete connector. It holds the crimp contacts in their cavities, positions them against the mating half and provides the latch — but it is supplied empty, so contacts are ordered separately and inserted after crimping. Pitch is the figure that governs compatibility. The 5601230200 Receptacle Housing rectangular connector is built on a 2.00 mm pitch, meaning the cavity centres sit 2.00 mm apart, and it will only mate with a header of the same pitch and way count. A 2.00 mm spacing is a mid-range choice: coarser and more forgiving to assemble than the 1.25 mm fine-pitch families, while still far more compact than the classic 2.54 mm grid. This is the two-way version, so it carries a single pair of circuits, and it is moulded in white. Confirm the matching header and the contact part number on your RFQ so that a complete, mateable set is quoted.
Key specifications
| Part number | 5601230200 |
|---|---|
| Type | Rectangular receptacle housing |
| Pitch | 2.00 mm |
| Number of ways | 2 |
| Colour | White |
Typical applications
Two-way housings on a 2.00 mm pitch are used for simple discrete connections inside equipment — a fan, a thermistor, a switch, an indicator, a small motor or a single power feed — where only one circuit pair has to be made and the connection needs to be separable for service. The two-way count also makes it a common choice for board-to-wire links that a technician must be able to unplug without disturbing a larger loom. Housing colour is frequently used in build documentation to distinguish otherwise identical connectors on an assembly.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
