M27500-24SB1T14 WIRE 24AWG WHITE — BOLTON SKU 53861.
About the M27500-24SB1T14 Aerospace Wire

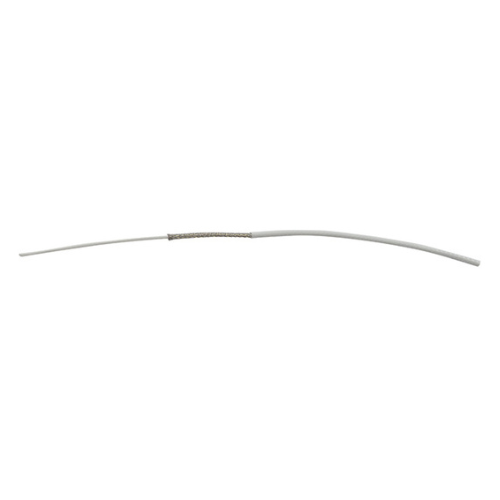

M27500-24SB1T14 is a shielded, jacketed aerospace cable designation under the M27500 system (NEMA WC 27500, formerly MIL-C/MIL-DTL-27500). The part number decodes as follows: 24 is the conductor size (24 AWG); SB is the basic-wire code, meaning the inner conductor is built to SAE AS22759/32 — tin-plated copper with crosslinked ETFE insulation; 1 is the number of conductors; T identifies a single round braid shield of tin-plated copper rated to 150 °C; and 14 identifies an extruded white ETFE outer jacket, also rated to 150 °C. The construction therefore provides a single 24 AWG screened conductor with an overall fluoropolymer jacket, suited to circuits that need electromagnetic screening in airframe wiring.
Key specifications
| Type | Shielded, jacketed single-conductor cable |
|---|---|
| Specification | M27500 (NEMA WC 27500; formerly MIL-DTL-27500) |
| Basic wire (code SB) | SAE AS22759/32 — tin-plated copper, crosslinked ETFE |
| Conductor size | 24 AWG |
| Conductors | 1 |
| Shield (code T) | Tin-plated copper round braid, single shield, 150 °C |
| Jacket (code 14) | Extruded ETFE, white, 150 °C |
Typical applications
M27500 shielded constructions are used in aircraft, UAV and defence platforms for signal and power runs that require EMI screening — avionics interconnects, sensor lines and data circuits — and in MRO harness repair to replace like-for-like screened cable.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
