Description

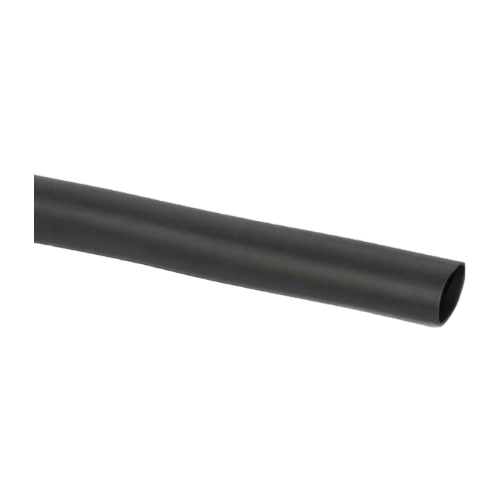

M23053/16-002-0 Tubing, Heat-Shrinkable, Thermofit DR-25 3/8″, Shrink Ratio 2:1, Elastomeric, Fluid & Abrasion Resistant — BOLTON SKU 53896.
About the M23053/16-002-0 Heat Shrink Tubing
M23053/16-002-0 is the military slash-sheet designation for TE Connectivity (Raychem) Thermofit DR-25 heat-shrinkable tubing in the 3/8 in size, qualified to the AMS-DTL-23053/16 specification for heat-shrink insulation sleeving. DR-25 is a flexible, elastomeric tubing engineered for harsh-environment wiring harnesses: it is flame-retardant and resistant to fluids, including fuels and hydraulic fluids, as well as abrasion, which is why it is widely specified as an outer jacketing layer over harness bundles. The tubing has a 2:1 shrink ratio, recovering to half its supplied diameter when heated, and distributor data for the DR-25 family quotes a continuous operating temperature range of approximately -75 °C to +150 °C. The final -0 suffix in the part number follows the specification’s colour-coding convention. Cut lengths or spool quantities are confirmed at quotation.
Key specifications
| Type | Heat-shrinkable tubing |
|---|---|
| Specification | AMS-DTL-23053/16 (M23053/16-002-0) |
| Trade name | TE Connectivity (Raychem) Thermofit DR-25 |
| Supplied size | 3/8 in |
| Shrink ratio | 2:1 |
| Material | Flexible elastomer, fluid and abrasion resistant, flame-retardant |
| Operating temperature | Approx. -75 °C to +150 °C (family data) |
Typical applications
DR-25 tubing is used as protective jacketing and identification sleeving on aerospace, UAV and vehicle wiring harnesses, and in MRO harness repair where fuel and hydraulic-fluid exposure rules out standard polyolefin sleeving.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
