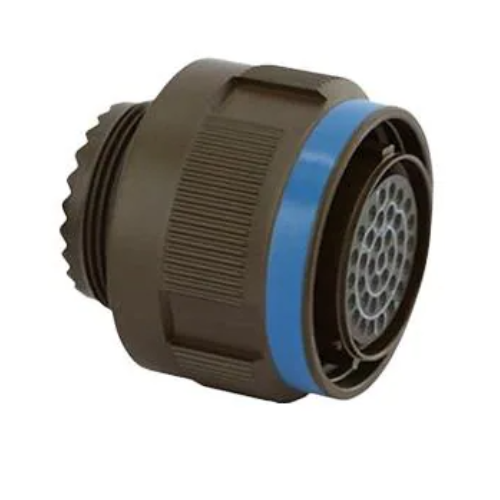

D38999/26WC35SN Connector for PPDU 5-CHANNEL — BOLTON SKU 54907.
About the D38999/26WC35SN Circular Connector
This designation is read straight from the MIL-DTL-38999 Series III scheme. The /26 slash sheet is a straight plug; W denotes an aluminium shell with olive drab cadmium plating; C is the shell size, equivalent to shell size 13; 35 is the insert arrangement, giving the 13-35 layout; S denotes socket contacts; and N is the normal key position. Published Series III arrangement charts list 13-35 as 22 contacts, all size 22D, at service rating M. It is therefore the socket-contact counterpart of the pin version carrying the same shell, arrangement and keying. Series III connectors use a triple-start self-locking coupling thread with anti-decoupling, provide EMI and RFI shell grounding, are sealed to IP67 when mated and are rated from -65 degrees C to +175 degrees C.
Key specifications
| Specification | MIL-DTL-38999 Series III |
|---|---|
| Connector style | /26 straight plug |
| Shell material and finish | Aluminium, olive drab cadmium (class W) |
| Shell size | C (size 13) |
| Insert arrangement | 13-35 |
| Contacts | 22 contacts, size 22D |
| Contact type | Socket, crimp termination |
| Key position | N (normal) |
| Service rating | M |
| Operating temperature | -65 degrees C to +175 degrees C |
Typical applications
Socket-contact Series III plugs terminate the cable side of power and signal harnesses on airframes, UAV systems, avionics and distribution racks, ground vehicles and deployable equipment. They are commonly specified on the output side of power distribution assemblies where a de-energised interface should present sockets rather than exposed pins. Harness shops and MRO facilities use them for new build and for repair against approved drawings.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
