RS PRO Insulated Crimp Bootlace Ferrule, 16 mm2, 12 mm Pin, Ivory (250-3488, Pack of 50) — BOLTON SKU 55083.
About the RS PRO Insulated Crimp Bootlace Ferrule

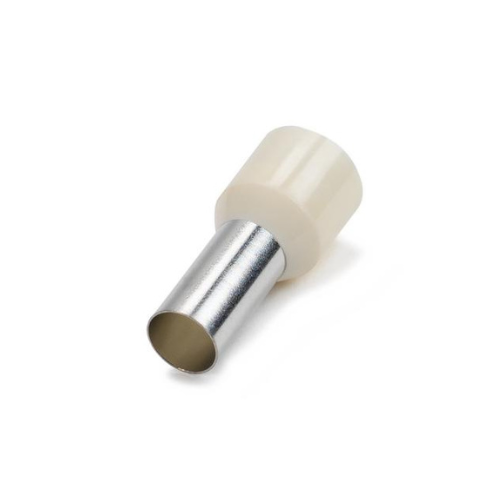

Stock number 250-3488 is an RS PRO insulated crimp bootlace ferrule sized for a 16 mm2 conductor, with a 12 mm pin length, in an ivory insulating collar and supplied in packs of 50. A bootlace ferrule is crimped onto the stripped end of a stranded conductor so that the strands are consolidated into a single solid pin. This RS PRO Insulated technical component matters at 16 mm2 in particular, because a conductor of that size carries a large number of fine strands that will splay, escape the clamp or bridge to the adjacent terminal if they are left bare. The insulated collar covers the strip line, guards against strand fray at the entry to the terminal and provides a positive stop when the ferrule is pushed home. Pin length is a fitting dimension rather than an electrical one: 12 mm must correspond to the depth of the terminal chamber, otherwise the crimped pin either bottoms out short of the clamp or protrudes past it. Crimping must be carried out with a die matched to the 16 mm2 section.
Key specifications
| Attribute | Value |
|---|---|
| Brand | RS PRO |
| Stock number | 250-3488 |
| Product type | Insulated crimp bootlace (wire-end) ferrule |
| Conductor cross-section | 16 mm2 |
| Pin length | 12 mm |
| Insulation colour | Ivory |
| Pack quantity | 50 |
Typical applications
Ferrules of 16 mm2 are used on the heavier conductors inside distribution boards, motor control centres, generator and UPS connection panels, and machine control cabinets — supply tails, busbar droppers and main incomers to terminal blocks and switchgear. The insulated version is chosen where terminals sit close together and a bare crimped pin would risk phase-to-phase or phase-to-earth bridging. Packs of 50 suit panel-build and commissioning work where the same conductor size recurs across a small number of heavy terminations.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
