M27500-22SB1T14 WIRE 1 STRANDED CONDUCTOR SHIELDED JACKETED 22 AWG WHITE — BOLTON SKU 55137.
About the M27500-22SB1T14 Aerospace Wire

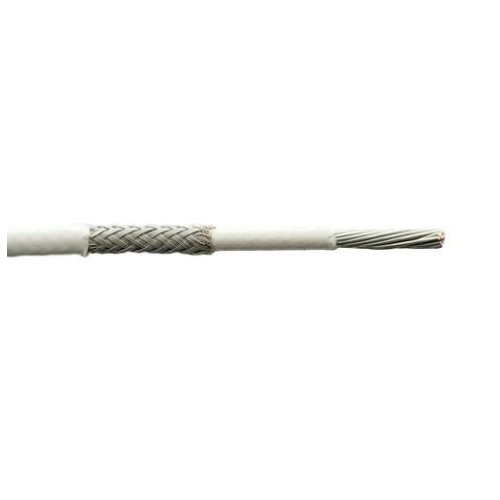

M27500-22SB1T14 is a shielded, jacketed aerospace cable built to the M27500 specification (NEMA WC 27500, formerly MIL-DTL-27500), which defines multi-component cables assembled from qualified military basic wires. Decoding the part number against the specification tables: 22 is the conductor size (22 AWG); SB designates basic wire to SAE AS22759/32 (tin-plated copper, crosslinked modified ETFE insulation); 1 is the number of conductors; T denotes a single round-braid shield of tinned copper rated to 150 °C; and 14 denotes an extruded white ETFE outer jacket, also rated to 150 °C. The result is a single-conductor screened and jacketed cable with an overall 150 °C temperature rating, used where a signal or power conductor requires electromagnetic screening and mechanical protection in airframe and equipment wiring.
Key specifications
| Type | Shielded, jacketed single-conductor cable |
|---|---|
| Specification | NEMA WC 27500 / M27500 (formerly MIL-DTL-27500) |
| Conductor | 1 × 22 AWG, basic wire to SAE AS22759/32 (code SB) |
| Shield | Tinned copper round braid, single shield (code T) |
| Jacket | Extruded ETFE, white (code 14) |
| Temperature rating | 150 °C |
Typical applications
M27500 shielded cables are used in aircraft, UAV and defence-system harnesses wherever conductors must be screened against electromagnetic interference — sensor lines, signal runs and power feeds in avionics and mission equipment. MRO and harness shops stock them for repair and modification of screened circuits.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
