Description

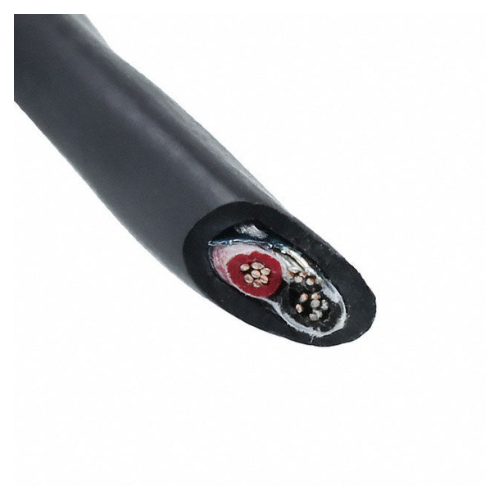

25462 BK005 Multi-Conductor Cable, 2 Conductor, 20 AWG, Foil Shield, 30 m, Black — BOLTON SKU 55365.
About the 25462 BK005 Multi-Conductor Cable, 2 Con Technical
Part 25462 in the BK005 variant is a multi-conductor cable with two 20 AWG conductors, a foil shield and a black jacket, supplied as a 30 m length. The 25462 BK005 Multi-Conductor technical component is a two-core construction, which is the configuration used for a single signal pair — one send and one return — rather than for multi-wire control looms. Foil shielding wraps the conductor group in a continuous metallised tape, giving full circumferential coverage against capacitively coupled electrical noise; it is the shield type normally chosen for instrumentation and low-level signal runs, and it depends on being terminated and earthed correctly at one end to be effective. At 20 AWG the conductors are substantial enough to be terminated in standard screw and cage-clamp terminals without ferrule difficulty, while remaining flexible enough for panel dressing. The 30 m supplied length suits a defined run or a small batch of cut lengths rather than bulk drum consumption.
Key specifications
| Attribute | Value |
|---|---|
| Part number | 25462 |
| Variant code | BK005 |
| Cable type | Multi-conductor |
| Number of conductors | 2 |
| Conductor size | 20 AWG |
| Shielding | Foil shield |
| Jacket colour | Black |
| Supplied length | 30 m |
Typical applications
A shielded two-core 20 AWG cable is the standard choice for single analogue instrument loops — 4-20 mA transmitter runs, thermocouple extension where the sensor type permits, load-cell and pressure-sensor connections — and for two-wire digital links such as RS-485 segments. The foil screen matters most where the run shares a route or a cable tray with motor, drive or contactor wiring and would otherwise pick up switching noise. The black jacket and 30 m length suit contained runs inside cabinets, skids and machine enclosures.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
