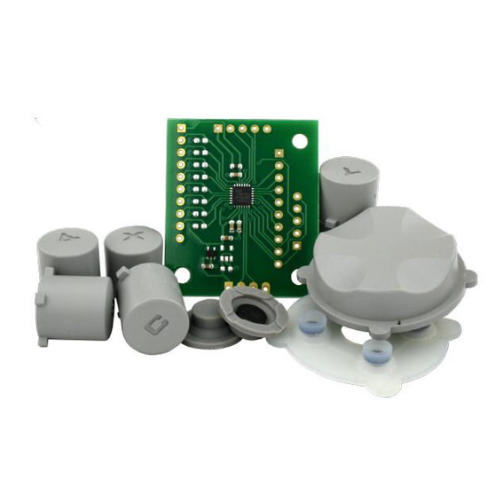

JoyWarrior28GP32 12-Button USB Joystick Interface Module — BOLTON SKU 55574.
About the JoyWarrior28GP32 12-Button USB Joystick Technical Co
The JoyWarrior28GP32 12-Button USB technical component belongs to Code Mercenaries’ JoyWarrior28 controller family, which provides a full-speed USB interface for custom joystick, gamepad and control-panel hardware. The device presents itself as a USB HID class device, so a host recognises it without vendor-supplied drivers. Four inputs are provided for direction switches, and the button inputs can be wired either as up to twelve directly connected switches or as a matrix of up to thirty-two buttons arranged eight by four. A mode pin selects mouse emulation at run time, allowing the same hardware to present either a gamepad or a pointing device to the host. An enable output signals USB suspend state to external circuitry, so downstream electronics can be shut down with the bus. The controller is offered both as a 28-pin QFN chip and as a ready-built module, the module form removing the need for a custom PCB in low-volume builds.
Key specifications
| Device family | JoyWarrior28 (Code Mercenaries) |
|---|---|
| Host interface | USB full speed, HID class |
| Direct button inputs | Up to 12 |
| Direction inputs | Four switches |
| Matrix capacity | Up to 32 buttons in an 8 x 4 matrix |
| Mouse emulation | Selectable at run time via mode pin |
| Suspend signalling | Enable output for external circuitry |
| Package options | 28-pin QFN chip or pre-built module |
Typical applications
Configured for direct button wiring, this variant suits rugged control grips, operator panels and test-bench interfaces where a modest, fixed number of switches has to be read. The run-time mouse-emulation mode makes the module useful for simple pointing or slew controls on console hardware built around a single USB port. The suspend-signalling output is relevant where a panel must respect host power states rather than remain live.
