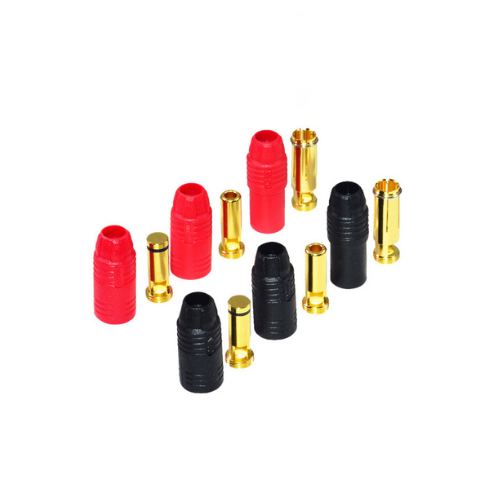

AMASS AS150 Female DC Power Connector, Red, 500 V 60 A, 6 AWG — BOLTON SKU 55606.
About the AMASS AS150 Female DC Power Connector
The AMASS AS150 Female connector is the socket half of the AS150 anti-spark DC power connector family used for battery, distribution and ESC connections in UAV and larger radio-controlled power systems. The AS150 design incorporates an anti-spark arrangement so that the capacitive inrush seen when a charged pack is connected is pre-charged through the connector rather than arcing across the main contact faces, which protects the plating and reduces pitting over repeated mating cycles. This item is the red-bodied female half, designated 500 V and 60 A with a 6 AWG conductor size. Colour is functional on a power loom rather than cosmetic: red and black bodies allow the two halves and their polarity to be identified without tracing cable, which matters on a flight-line where packs are swapped quickly and repeatedly by different people.
Key specifications
| Brand | AMASS |
|---|---|
| Series | AS150 |
| Gender | Female |
| Body colour | Red |
| Designated voltage | 500 V |
| Designated current | 60 A |
| Conductor size | 6 AWG |
| Design feature | Anti-spark (pre-charge) DC connector |
Typical applications
The female half is normally the battery-side or supply-side fitting in a UAV power chain, mating with the male half on the airframe harness or power-distribution board. Its 6 AWG conductor size places it on main pack leads and primary distribution runs rather than on accessory or servo wiring. Beyond airframes, AS150-class connectors are used on ground power carts, battery charging benches and test rigs where large packs are connected and disconnected many times a day.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Uav Power Energy.
