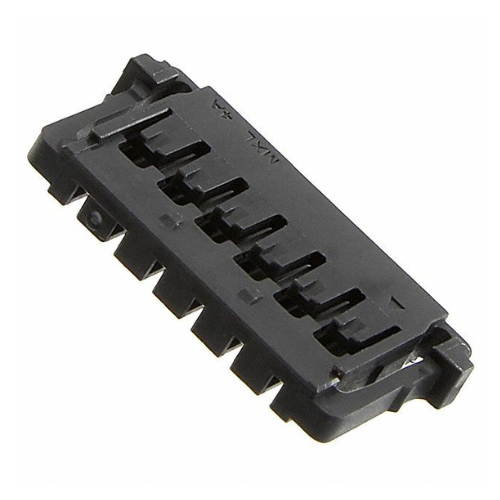

Molex 504051-0601 Crimp Housing, 6-Position, 1.50 mm Pitch — BOLTON SKU 55600.
About the Molex 504051-0601 Crimp Housing, 6-Posit Technical
The Molex 504051-0601 Crimp technical component is a crimp housing from the Pico-Lock 1.50 mm pitch wire-to-board family. It carries six circuits in a single row on a 1.50 mm pitch and is documented with a 2.00 mm mated height, which is what makes the family attractive where board real estate and stack height are both constrained. Retention is by positive side locks, so the mated pair is held by dedicated latching features rather than by contact friction alone, and the housing is polarised so that it cannot be presented to the header the wrong way round. As a crimp housing it is supplied without terminals: the matching crimp terminals and the board-mount header are ordered separately, and the finished assembly is built by crimping each conductor and inserting the terminals into the cavities.
Key specifications
| Manufacturer | Molex |
|---|---|
| Part number | 504051-0601 |
| Product family | Pico-Lock 1.50 mm |
| Product type | Crimp housing (wire-to-board) |
| Circuits | 6 |
| Rows | Single row |
| Pitch | 1.50 mm |
| Mated height | 2.00 mm |
| Retention | Positive side locks |
Typical applications
Six-way 1.50 mm housings are used for compact internal interconnects where a small bundle of signal and low-current supply lines has to reach a board without a ribbon or a soldered joint. The low 2.00 mm mated height suits stacked assemblies, display and sensor modules, and instrument sub-assemblies inside sealed enclosures. Positive side locks make the family suitable where an assembly will be handled or transported, since a latched connector is far less likely to back out under vibration than a friction-fit alternative.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
