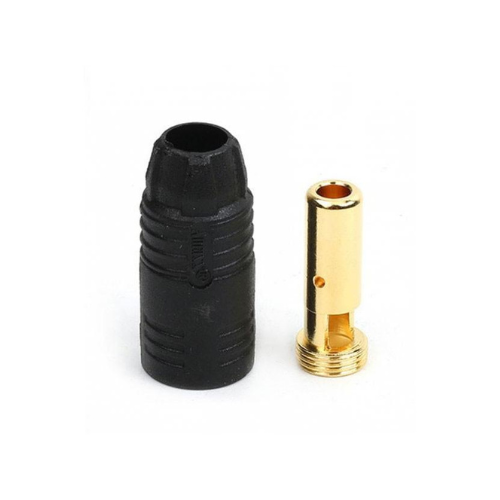

AMASS AS150 Male DC Power Connector, Black, 500 V 60 A, 6 AWG — BOLTON SKU 55608.
About the AMASS AS150 Male DC Power Connector
The AMASS AS150 Male connector is the pin half of the AS150 anti-spark DC power connector family, supplied here with a black body and designated 500 V, 60 A and 6 AWG conductor size. AS150 connectors are used for battery and ESC connections in UAV and larger radio-controlled power systems, and the series carries an anti-spark arrangement that pre-charges the load capacitance as the halves come together instead of allowing the inrush to arc across the main contacts. The practical benefit is on the male half in particular: contact faces stay cleaner for longer, and the repeated hot-plugging that a flight-line imposes does not degrade the mating surfaces as quickly. The black body identifies this half against the red female counterpart, which removes ambiguity when two identical-looking leads are presented during a pack change.
Key specifications
| Brand | AMASS |
|---|---|
| Series | AS150 |
| Gender | Male |
| Body colour | Black |
| Designated voltage | 500 V |
| Designated current | 60 A |
| Conductor size | 6 AWG |
| Design feature | Anti-spark (pre-charge) DC connector |
Typical applications
The male half typically terminates the airframe or equipment side of a power chain, receiving the battery lead carrying the mating female connector. Its 6 AWG conductor size places it on main power runs into distribution boards, power modules and high-current speed controllers rather than on auxiliary circuits. The same connector is used to terminate ground-support leads, bench supplies and load-test harnesses so that laboratory equipment mates directly with flight batteries without adapters.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
