RG-316 Coaxial Cable, 50 Ohm — BOLTON SKU 55621.
About the RG-316 Coaxial Cable 50 Ohm

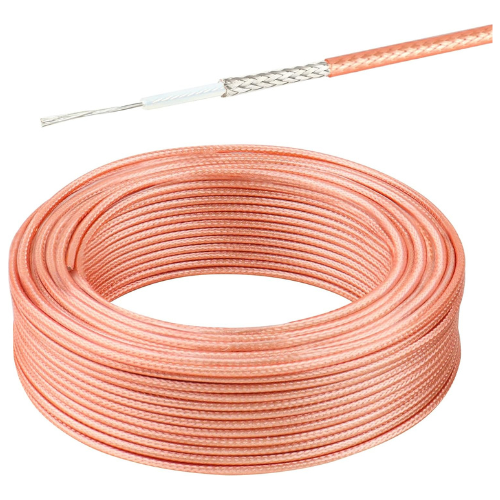

RG-316/U is a small-diameter flexible coaxial cable with a characteristic impedance of 50 ohms. The inner conductor is a seven-strand construction of 0.17 mm wires, giving an effective conductor diameter of about 0.51 mm, and the dielectric is PTFE, which gives the cable a velocity factor of 0.69. A single braided shield surrounds the dielectric, and the finished cable measures approximately 2.6 mm, or 0.098 inches, overall. Published attenuation is about 22.45 dB per 100 feet at 750 MHz. The stranded centre conductor and small overall diameter are what make the type flexible enough to route around tight bends, and it is widely used for RG-316 Coaxial 50 cable assembly work inside equipment and between closely spaced connectors. Supplied here as cable; connector types, termination method, assembly length and any test data or certification should be specified with the enquiry.
Key specifications
| Attribute | Value |
|---|---|
| Cable type | RG-316/U |
| Characteristic impedance | 50 ohms |
| Inner conductor | 7 x 0.17 mm stranded (approx. 0.51 mm) |
| Dielectric | PTFE |
| Shielding | Single braid |
| Overall diameter | Approx. 2.6 mm (0.098 in) |
| Velocity factor | 0.69 |
| Attenuation | Approx. 22.45 dB per 100 ft at 750 MHz |
| BOLTON SKU | 55621 |
Typical applications
Cable of this diameter is chosen for internal RF interconnects where a larger 50 ohm cable will not make the bend radius available: jumpers between boards and bulkhead connectors, antenna and receiver tails, and instrumentation links on test benches. The PTFE dielectric and thin profile also suit runs that pass close to other harnesses inside a crowded enclosure. Attenuation rises steeply with frequency on a cable this small, so run lengths are normally kept short.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
