HellermannTyton 170-81100 HEGPETFRX03 Braided Sleeving, PET, Black, 200 m Reel — BOLTON SKU 55684.
About the HellermannTyton 170-81100 HEGPETFRX03 Br Cable Manag

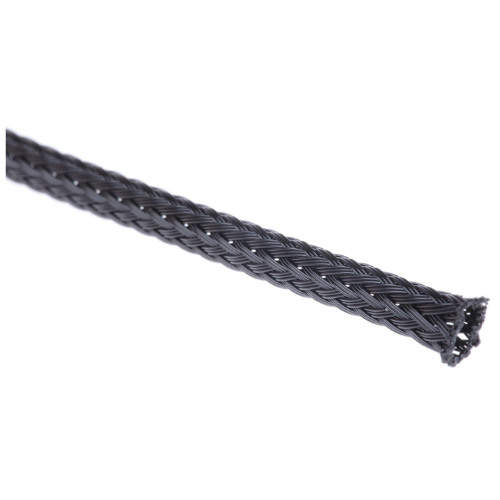

HellermannTyton 170-81100 HEGPETFRX03 cable management sleeving is a flame-retardant braided sleeve made from polyester (PET). It is supplied in black with a grey identification yarn woven into the braid, at a nominal diameter of 3 mm, and covers bundles from 2 mm to 6 mm; the open braid expands over connectors and irregular shapes during installation and then relaxes back onto the bundle. The reel length is 200 m. The material is described as self-extinguishing and halogen-free, is rated to FMVSS 302 Type B and UL 1441 VW-1, and carries UL recognition under file E197993. The operating temperature range runs from minus 50 degrees C to plus 150 degrees C, with a melting point of plus 250 degrees C, and the product is RoHS and ELV compliant. Braided PET also provides abrasion resistance where a loom bears against structure or fasteners.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer part number | 170-81100 |
| Product designation | HEGPETFRX03 |
| Material | Polyester (PET), halogen-free |
| Nominal diameter | 3 mm |
| Bundle range | 2 to 6 mm |
| Colour | Black with grey identification yarn |
| Reel length | 200 m |
| Operating temperature | -50 to +150 degrees C |
| Melting point | +250 degrees C |
| Flammability | FMVSS 302 Type B, UL 1441 VW-1 (UL file E197993) |
Typical applications
At 3 mm nominal the sleeve is sized for single leads and very small bundles — sensor tails, coaxial jumpers and short interconnects between boards or panel items — where the requirement is abrasion protection and a tidy finish rather than bulk containment. The flame rating and halogen-free composition make it a candidate where the cable run passes through an occupied compartment or an enclosure with a fire-performance requirement. The 200 m reel suits continuous production use rather than one-off repairs.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
