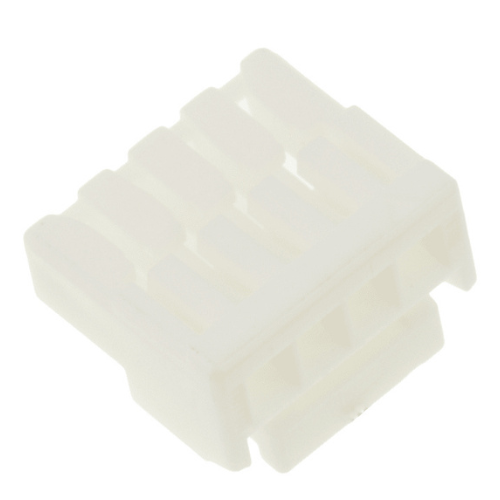

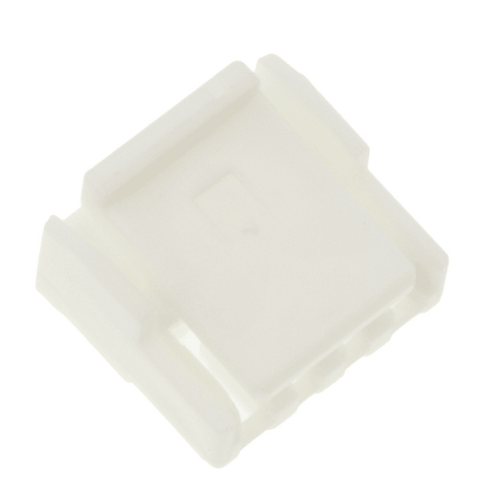

GHR-04V-S CONN JST PLUG 4 PIN FEMALE CRIMP 1.25MM — BOLTON SKU 55698.
About the GHR-04V-S Connector
The JST GHR-04V-S is a connector housing from JST’s GH series of 1.25 mm pitch wire-to-board connectors. It is the 4-circuit, single-row crimp-style housing: GH series crimp contacts, ordered separately, are crimped to discrete wires and inserted into the housing, which then mates with the corresponding GH shrouded header on the printed circuit board. The GH series is characterised by a secure positive locking structure between housing and header, low insertion force with a clear tactile click on mating, and compact 1.25 mm pitch construction developed for small electronic equipment. Distributor data for the series lists a current rating of 1 A with 26 AWG wire, a 50 V voltage rating and 100 MΩ minimum insulation resistance. The housing design also protects contacts against deformation during crimping and retains them securely once latched, which supports reliable harness production at this miniature pitch.
Key specifications
| Type | Wire-to-board connector housing, crimp style |
|---|---|
| Series | JST GH |
| Pitch | 1.25 mm |
| Circuits | 4, single row |
| Ratings (series data) | 1 A (with 26 AWG), 50 V |
| Mating part | JST GH series shrouded header |
| Contacts | GH series crimp contacts, ordered separately |
Typical applications
GH series housings are used for compact wire-to-board interconnections in space-constrained electronics — sensor modules, small controllers and instrumentation. They are a common harness-side component in UAV and embedded-electronics assembly and repair.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Contacts & Terminations.
