M22759/18-22-2 WIRE RED 22 AWG ETFE, 600V 150C, 0.76MM — BOLTON SKU 56070.
About the M22759/18-22-2 Aerospace Wire

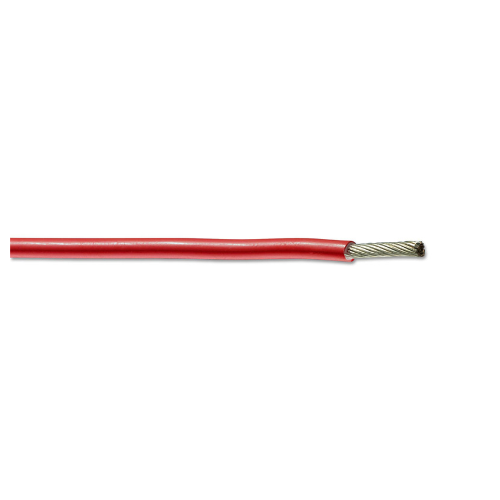

M22759/18, maintained today as SAE AS22759/18, is the thin-wall (light-weight) slash sheet of the M22759 airframe wire family: a tin-plated copper conductor with extruded ETFE insulation, rated 600 V over −55 °C to +150 °C. The two trailing fields give conductor size and colour, so 22 is 22 AWG and 2 is red, the colour digit being assigned in accordance with MIL-STD-681. In 22 AWG the conductor is stranded 19/34 with a diameter of 0.030 in, and the finished insulated outside diameter is 0.041–0.045 in — noticeably slimmer than the normal-wall /16 equivalent, which is the point of the /18 sheet. Red is conventionally reserved for identifying a specific circuit function within a harness, so this reel is normally ordered against a wiring diagram rather than as general stock. Wire is supplied from spool and cut to the ordered length.
Key specifications
| Specification | M22759/18 (SAE AS22759/18) |
|---|---|
| Conductor size | 22 AWG |
| Stranding | 19/34 |
| Conductor | Tin-plated copper |
| Insulation | Thin-wall extruded ETFE |
| Voltage rating | 600 V |
| Temperature range | −55 °C to +150 °C |
| Conductor diameter | 0.030 in |
| Insulated outside diameter | 0.041–0.045 in |
| Colour | Red (colour digit 2, MIL-STD-681) |
Typical applications
Red 22 AWG thin-wall wire is used where a live, positive or otherwise distinguished conductor must be identifiable by eye inside a finished loom — power feeds to avionics and sensor units, switched supplies, and signal pairs that a wiring diagram calls out by colour. The 22 AWG size is the workhorse gauge for instrumentation and control runs in airframes, unmanned platforms and ground support equipment. Order the matching crimp contacts and identification sleeving alongside so a termination can be completed in one pass.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
