Description
XT30UD-F CONN XT-30 FEM BULLET POWER PLUG — BOLTON SKU 56865.
About the XT30UD-F Connector

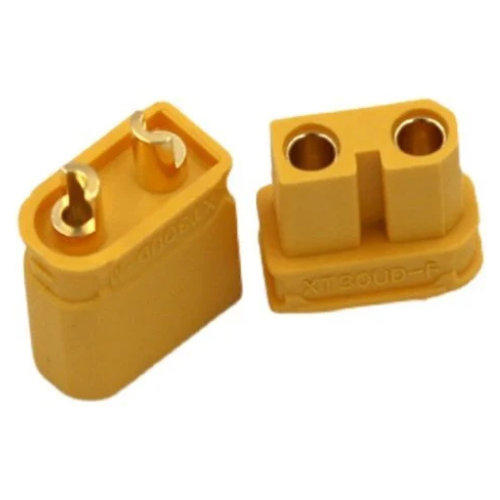

The AMASS XT30UD-F is the female connector of the XT30 series, a compact polarised two-pin DC power connector family widely used for battery and ESC power connections in UAV and RC electric systems. XT30 connectors use 2 mm gold-plated brass bullet contacts housed in a keyed nylon (PA) body with a UL94 V-0 flammability rating, so the plug can only be mated in the correct polarity. AMASS rates the XT30 family at 15 A continuous with 30 A momentary current, 500 V DC, with a recommended cable size of 18 AWG and an operating temperature range of -20 °C to +120 °C. The ‘UD’ variant in the part number is AMASS’s designation for this housing style within the XT30U family; contact geometry and series ratings are common to the XT30 platform.
Key specifications
| Series | AMASS XT30 (XT30U family) |
|---|---|
| Gender | Female |
| Contacts | 2 mm gold-plated brass bullet, 2-position, polarised |
| Rated current | 15 A continuous, 30 A momentary (series rating) |
| Rated voltage | 500 V DC (series rating) |
| Housing | Nylon (PA), UL94 V-0 |
| Recommended wire | 18 AWG |
| Operating temperature | -20 °C to +120 °C |
Typical applications
XT30 connectors are standard on small UAV, drone and RC power systems — battery leads, ESC inputs, power distribution boards and charge leads — and are equally useful for compact DC power connections in prototypes and test rigs. The polarised housing prevents reverse-polarity mating in the field.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Uav Power Energy.
