RFD-06-01-FTDI-USB-CABLE RF Design – FTDI USB Cable 3.3V — BOLTON SKU 57107.
About the RFDesign FTDI USB Cable 3.3

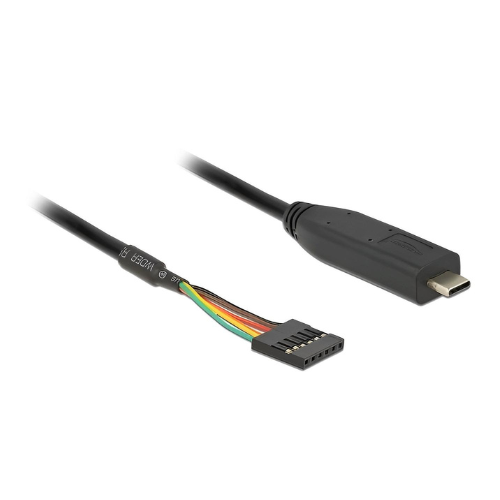

This is the RFDesign FTDI USB cable in the 3.3 V variant: a USB-to-TTL serial adapter cable with an FTDI bridge chip moulded into the USB connector shell, presenting 3.3 V logic levels on the serial side while drawing its 5 V supply from the USB port. Its stated purpose is to interface an RFD900-series radio modem — or any other TTL-level serial device — to a PC through USB, so the modem can be configured, updated and monitored from a ground control station or a bench. The cable is quoted at 1.8 m length. FTDI-based cables of this type are used with the manufacturer’s Virtual COM Port (VCP) drivers, which present the cable to the host operating system as a standard serial port; RFDesign publishes guidance on driver versions for these cables. Voltage variant matters: a 5 V cable must not be substituted where 3.3 V logic is specified.
Key specifications
| Attribute | Value |
|---|---|
| Type | FTDI USB-to-TTL serial cable |
| Serial logic level | 3.3 V |
| Supply | 5 V from the USB port |
| Cable length | 1.8 m |
| Host interface | USB, via FTDI Virtual COM Port (VCP) drivers |
| Intended use | Interfacing RFD900-series modems and other TTL serial devices to a PC |
Typical applications
Cables of this type are ground support and bench items: configuring and updating telemetry radios, reading serial output from flight controllers, sensors and instrumentation, and bringing up new hardware on a workshop bench. They are routinely kept in UAV integration kits and MRO toolboxes, where a laptop is the configuration terminal for embedded equipment. Check the logic-level variant against the target device before connecting.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
