Moxa NPort 5410 4-Port RS-232 Serial Device Server — BOLTON SKU 57547.
About the Moxa NPort 5410 4-Port RS-232 Serial

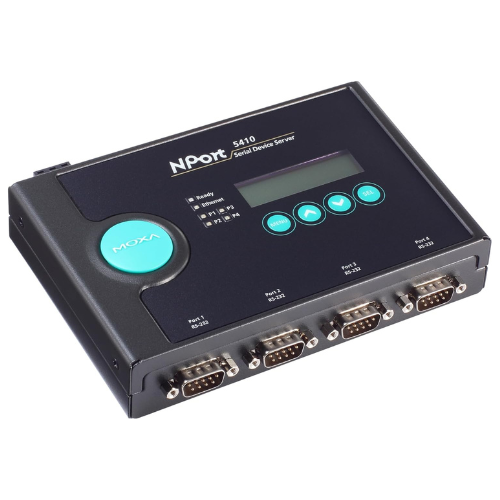

The Moxa NPort 5410 technical component is a four-port serial device server: it presents four RS-232 ports on DB9 male connectors and makes them reachable over an Ethernet network, so serial instruments and controllers can be addressed from software running elsewhere on that network without a local serial port. Each port operates independently and supports baud rates from 50 up to 921.6 kbps, with RTS/CTS and DTR/DSR hardware flow control. The network side is a single 10/100BaseT(X) port on RJ45 with 1.5 kV magnetic isolation. Operating modes include TCP Server, TCP Client and UDP, and the unit can be managed over SNMP. Power input is 12 to 48 VDC, drawing 365 mA at 12 VDC, with dual inputs provided as a terminal block and a DC jack. The unit measures 181 by 103 by 33 mm including mounting ears and operates from 0 to 55 degrees C, with a storage range of minus 40 to plus 75 degrees C.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer / model | Moxa NPort 5410 |
| Serial ports | 4 x RS-232 |
| Serial connector | DB9 male |
| Baud rate | 50 bps to 921.6 kbps |
| Flow control | RTS/CTS, DTR/DSR |
| Network interface | 10/100BaseT(X), RJ45, 1.5 kV magnetic isolation |
| Operation modes | TCP Server, TCP Client, UDP |
| Power input | 12 to 48 VDC, 365 mA at 12 VDC |
| Operating temperature | 0 to 55 degrees C |
| Dimensions | 181 x 103 x 33 mm |
Typical applications
Four-port RS-232 device servers are used to bring legacy serial equipment onto an existing Ethernet backbone: bench and rack instrumentation, barcode and weighing equipment, PLC and controller consoles, and monitoring devices whose only interface is a serial port. Grouping four ports in one unit suits a cabinet or rack where several serial devices sit together and only one network drop is available. The 12 to 48 VDC input range lets it be powered from the same supply rail as the equipment it serves.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
