Harwin M80-8883401 Datamate L-Tek 2 mm Pitch Crimp DIL Socket — BOLTON SKU 58012.

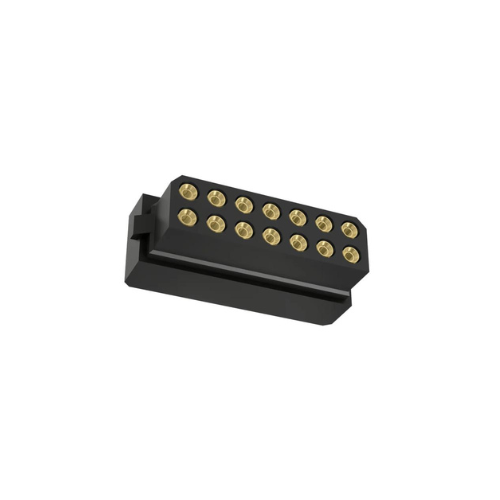

About the Harwin M80-8883401 Datamate L-Tek 2 mm

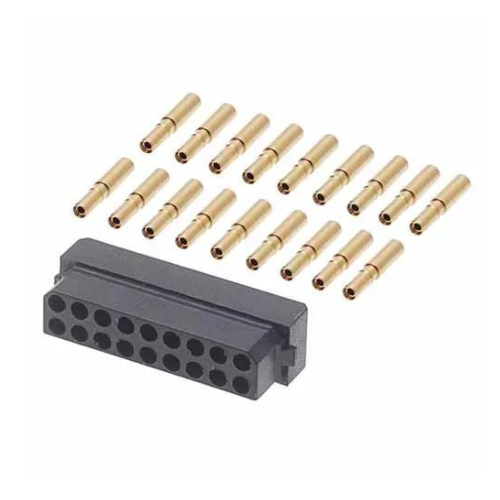

The Harwin M80-8883401 Datamate connector is a 34-way female cable receptacle from the Datamate L-Tek series, arranged as two rows of 17 contacts on a 2.00 mm pitch. It is a crimp-terminated part: the kit is supplied with loose crimp contacts that are applied to the wire and then inserted into the housing, which suits made-to-length harnesses and assemblies that need to be repairable. Contacts use a beryllium copper clip with a gold contact finish for low and stable contact resistance, with terminations finished 100 percent tin over nickel; the shell is brass and the housing is PBT rated UL94V-0. Harwin rates the contacts at 3.3 A maximum on an individual contact and 3 A maximum with all contacts loaded simultaneously at 25 degrees C, across an operating range of -55 to +125 degrees C. The connector accepts 24 to 28 AWG wire up to 1.1 mm insulation diameter and carries the series latching feature.
Key specifications
| Manufacturer | Harwin |
|---|---|
| Part number | M80-8883401 |
| Series | Datamate L-Tek |
| Contacts | 34 (2 rows of 17) |
| Pitch | 2.00 mm |
| Gender | Female receptacle, cable mount |
| Termination | Crimp, 24-28 AWG (max 1.1 mm insulation dia.) |
| Current rating | 3.3 A single contact / 3 A all contacts at 25 C |
| Operating temperature | -55 C to +125 C |
| Housing material | PBT, UL94V-0 |
Typical applications

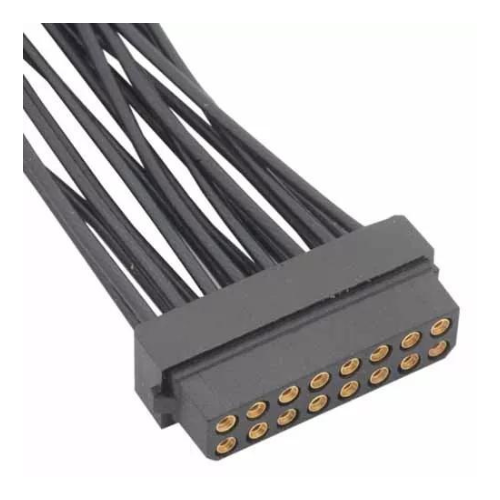

Datamate L-Tek connectors are specified for signal and low-power interconnect in equipment that has to survive shock, vibration and wide temperature swings — avionics boxes, unmanned-aircraft payloads, instrumentation and test equipment. A 34-way crimp receptacle of this size is normally the cable half of a board-to-cable link carrying a mixed bundle of signals and small supply rails. The latching feature and the -55 to +125 degrees C rating make it suitable for airborne and vehicle-mounted assemblies where a friction-fit connector would not be accepted.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
