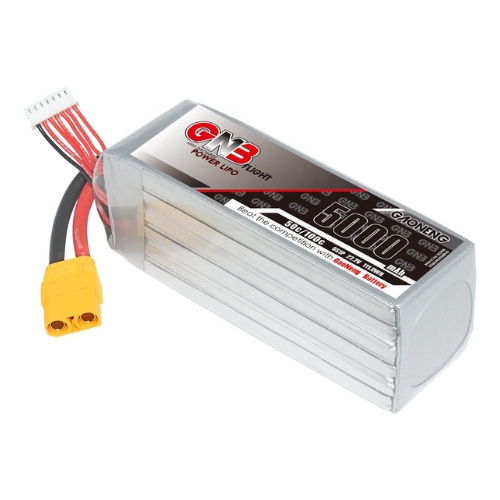

GAONENG GNB 5000mAh 6S 22.2V 50C LiPo Battery, XT90 — BOLTON SKU 58033.
About the GAONENG GNB 5000mAh 6S 22.2V 50C
The GAONENG GNB 5000mAh battery is a lithium-polymer pack built in a 6S configuration: six cells wired in series, which is what produces the 22.2 V nominal pack voltage quoted in the designation (six cells at 3.7 V nominal each). Rated capacity is 5000 mAh, so the pack stores approximately 111 Wh — the figure that governs how it must be declared, packed and documented for air transport, and the first number a freight forwarder will ask for. The 50C marking is the manufacturer’s continuous discharge rating expressed as a multiple of rated capacity; at 5 Ah that corresponds to 250 A continuous. Termination is an XT90 connector, the largest of the common XT-series bullet connectors and the size matched to that current level. Packs in this configuration are charged on a balance charger set to six cells so that individual cell voltages stay matched through the charge cycle.
Key specifications
| Brand | GAONENG (GNB) |
|---|---|
| Chemistry | Lithium polymer (LiPo) |
| Cell configuration | 6S (six cells in series) |
| Nominal voltage | 22.2 V |
| Rated capacity | 5000 mAh |
| Stored energy | Approx. 111 Wh (calculated) |
| Continuous discharge rating | 50C (250 A at rated capacity) |
| Connector | XT90 |
Typical applications
A 6S 5000 mAh pack sits in the size class used by larger multirotor airframes and heavier fixed-wing models, where endurance matters as much as peak current — survey and inspection platforms, camera-carrying aircraft and training airframes. The XT90 termination signals that it is intended for high-current propulsion rather than avionics or payload supply. Packs of this capacity are also used on the bench as a portable 22 V source when propulsion systems are being run up and instrumented.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Uav Power Energy.
