Description
170-10400 BRAIDED SLEEVE,TYPE:HEGP04,NOM DIA:4MM,DIA:2-7MM,ABRASION RESISTANT ,MELTING PT:+250 C,OPERATNG TEMP: -50C TO — BOLTON SKU 58819.
About the 170-10400 Test Equipment

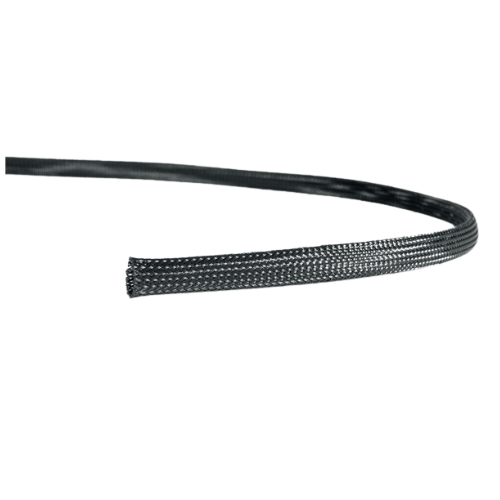

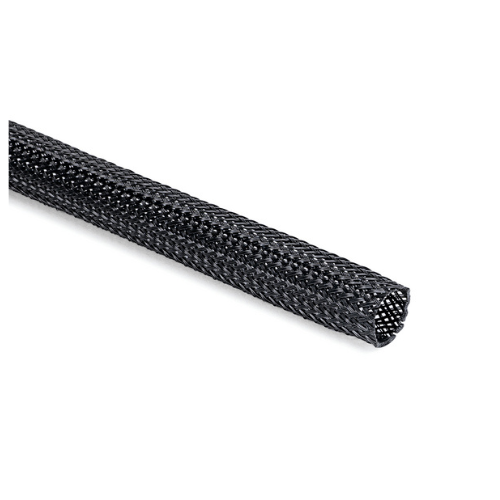

HellermannTyton 170-10400 is the order number for HEGP04 standard polyester braided sleeving. HEGP sleeving is an expandable, open-weave braid of PET monofilament used to bundle and protect leads, cables and harnesses: the special woven structure lets the braid expand to slip easily over plugs and connectors, then settle around the bundle to give an abrasion-resistant outer layer while staying lightweight, flexible and open to air. This size has a nominal diameter of 4 mm and suits bundle diameters from 2 mm to 7 mm, and the product designation states a melting point of +250 °C with a low-temperature figure of -50 °C. The manufacturer recommends cutting the sleeving with a hot cutting tool, or fusing the cut ends with a soldering iron, to prevent the braid fraying in service. Expandable PET braid of this class is a standard harness-dressing material across equipment, vehicle and airframe wiring work.
Key specifications
| Type | Expandable braided sleeving, open weave |
|---|---|
| Series / type | HellermannTyton HEGP04 |
| Material | PET (polyester) monofilament |
| Nominal diameter | 4 mm |
| Bundle range | 2–7 mm |
| Melting point | +250 °C (per designation) |
| Low-temperature figure | -50 °C (per designation) |
| Property | Abrasion resistant |
Typical applications
Expandable PET braid dresses and protects cable bundles in equipment builds, vehicle and airframe harnessing, rack wiring and UAV integration. It is fitted where harness runs need abrasion protection and a tidy finish without significant added weight.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
