Description

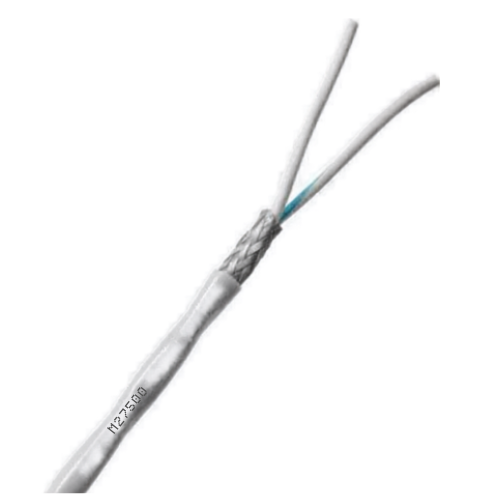

M27500-26TG2T14 CABLE, 2 CORE, INSULATED, 26 AWG, WHITE, ETFE, 150°C — BOLTON SKU 59047.
About the M27500-26TG2T14 Aerospace Wire
M27500-26TG2T14 is a two-core shielded and jacketed aerospace cable defined by the M27500 / NEMA WC 27500 specification system. Decoding the part number against the M27500 numbering guide: 26 is the conductor size (26 AWG); TG identifies the component wire as AS22759/18 — tin-coated copper with lightweight ETFE insulation, rated 600 V and 150 °C; 2 is the conductor count; T is a tin-coated copper round braid shield; and 14 is an extruded ETFE jacket. This matches the item name, which records a 2-core, 26 AWG, ETFE, 150 °C construction in white — white being the standard base colour for this jacket code in distributor listings of the TG/T14 family. The fine 26 AWG gauge makes this a light signal-grade cable rather than a power feeder.
Key specifications
| Specification | M27500 / NEMA WC 27500 |
|---|---|
| Component wire | AS22759/18 — tin-coated copper, ETFE, 600 V, 150 °C |
| Conductor size | 26 AWG |
| Conductors | 2 |
| Shield | Tin-coated copper round braid (code T) |
| Jacket | Extruded ETFE (code 14), white (per item name) |
Typical applications
Fine-gauge M27500 shielded pairs carry sensor, signal and data circuits in airframe and avionics wiring and in UAV harnesses where weight is at a premium. They are a standard consumable in aerospace harness manufacture and repair.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Wire & Cable.
