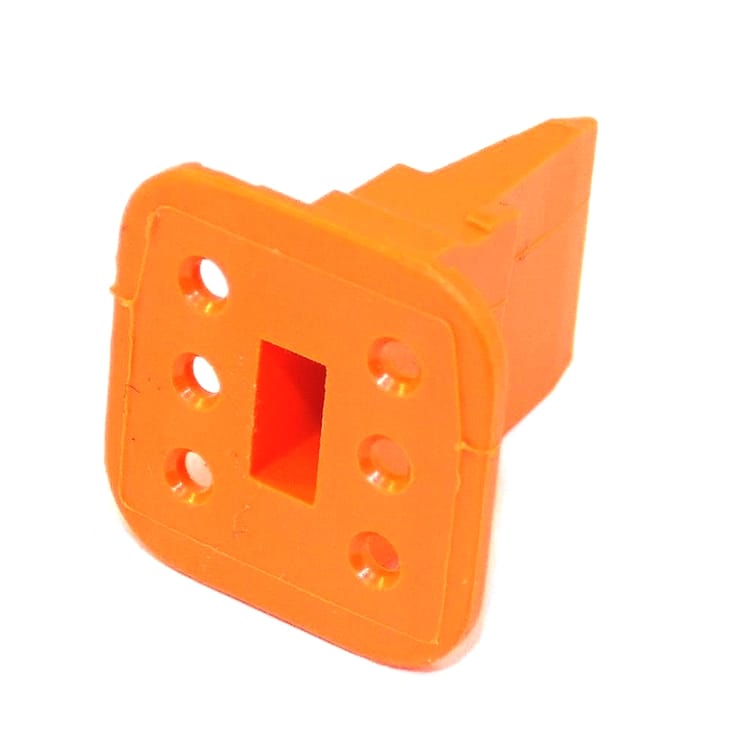

W6S DT Series Wedgelock, 6-Way, Orange — BOLTON SKU 59310.
About the W6S DT Series Wedgelock 6-Way Orange
The W6S DT Series technical component is the six-way wedgelock in the DEUTSCH DT range, supplied in orange. Within DT wedgelock numbering the leading digit gives the cavity count and the S indicates the wedgelock for socket-contact plug housings, so this item pairs with a six-position DT06 plug such as the DT06-6S. TE describes DT wedgelocks as a required component for all DEUTSCH DT housings: the wedgelock is assembled at the mating interface and pressed into place once the contacts are loaded, holding them in alignment and providing secondary retention. On a six-cavity housing that function carries more weight than on a two-way, because a single partially seated contact among six is easy to miss by feel and will show itself instead as a wedgelock that refuses to press home.
Key specifications
| Series | DEUTSCH DT |
|---|---|
| Part number | W6S |
| Component type | Wedgelock (secondary contact lock) |
| Ways | 6 |
| For use with | DT series 6-position plug (socket-contact) housings |
| Colour | Orange |
Typical applications
Six-way wedgelocks are ordered alongside six-way plug housings and socket contacts as a matched set for harness builds, and separately as spares because they are easily mislaid during rework. They belong in the repair kit for any platform that uses six-way DT breakouts between chassis and module harnesses. Workshops carrying out connector re-pinning hold a supply so a contact can be released and re-terminated without replacing the housing.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
