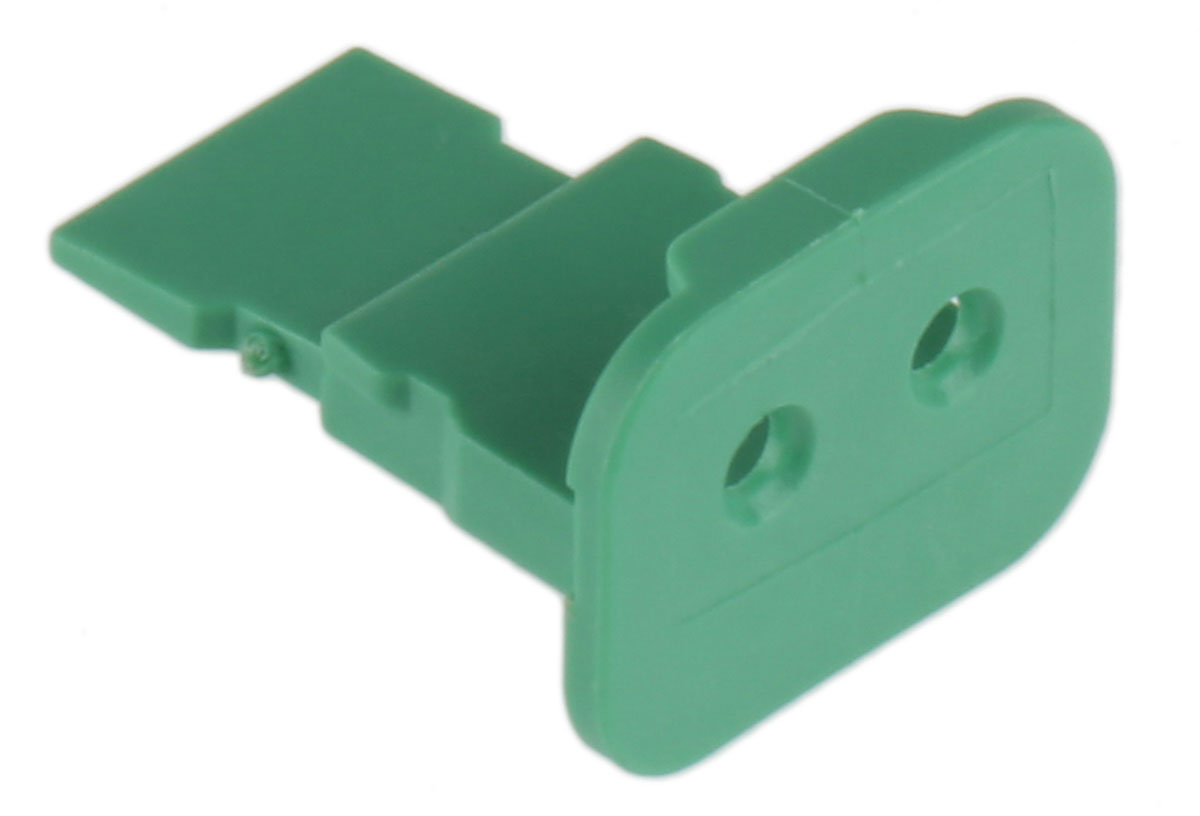

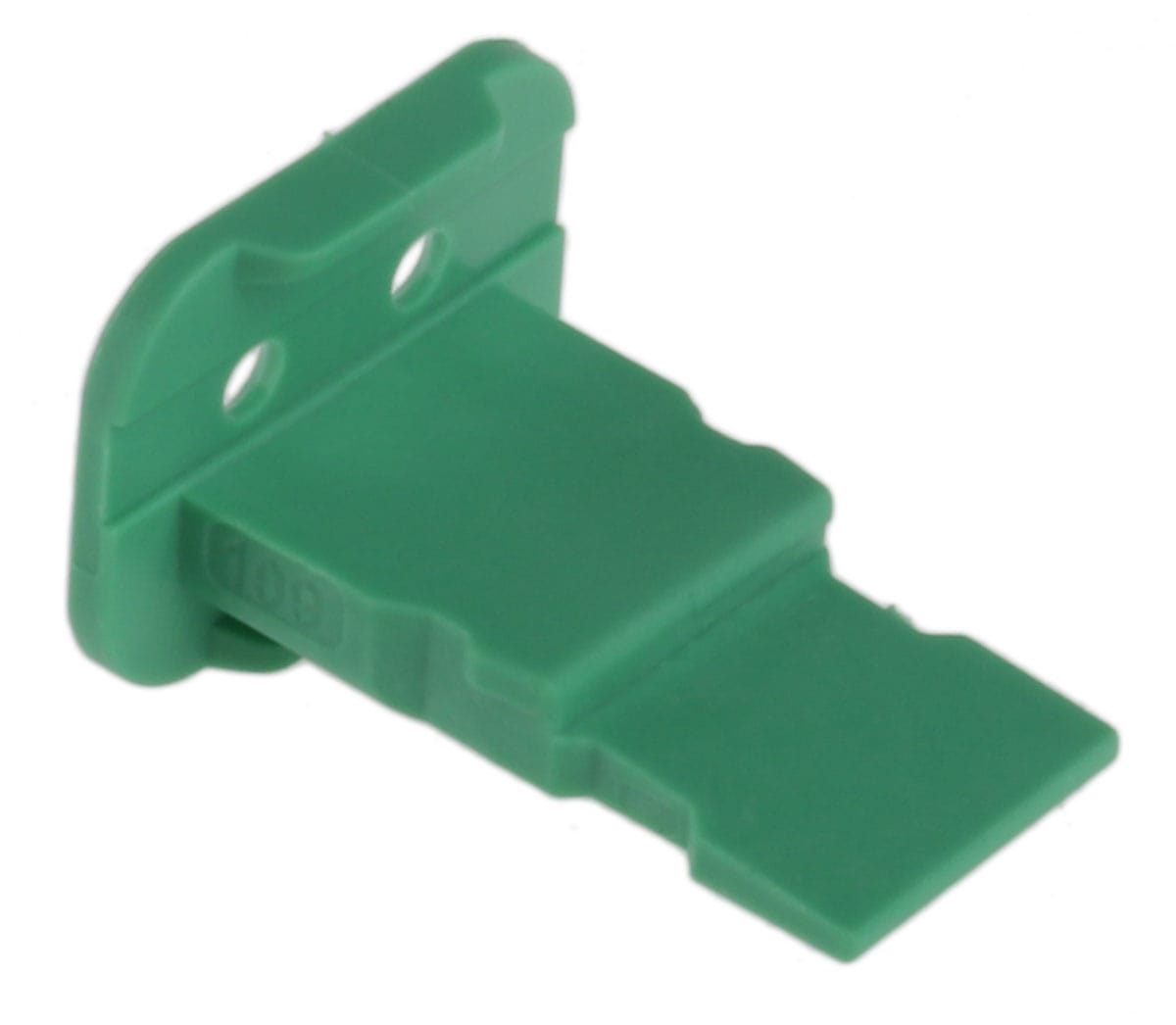

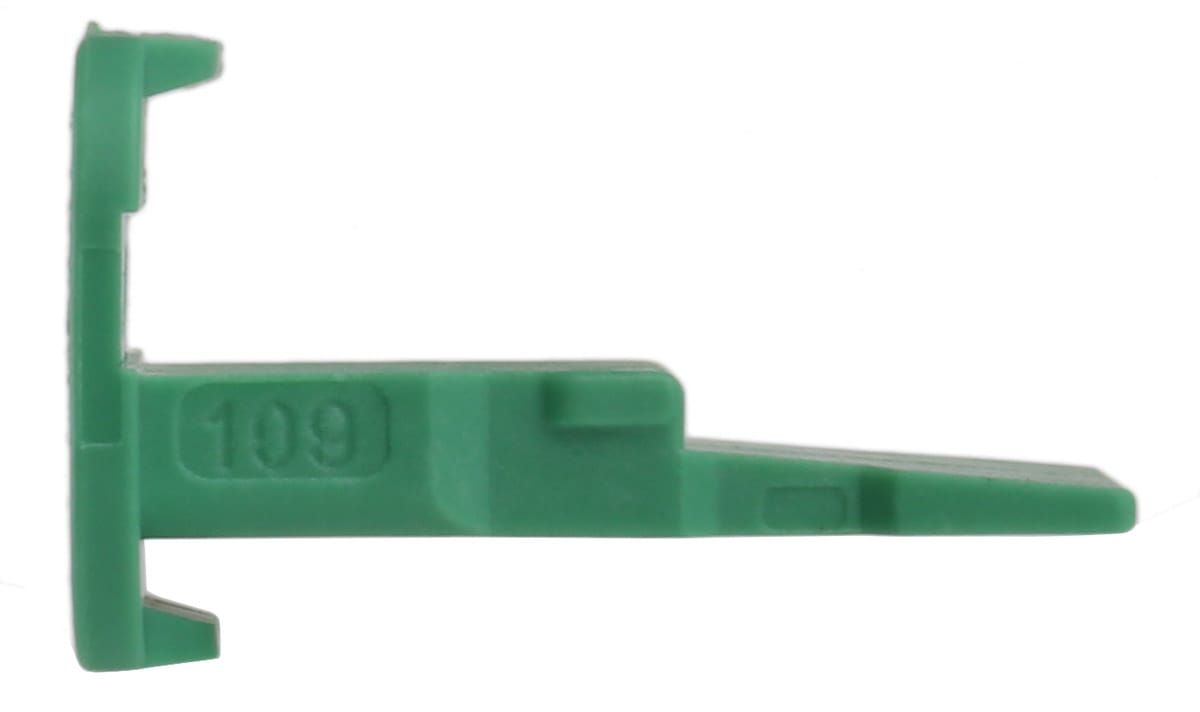

Deutsch DT Series 2-Way Male Wedgelock — BOLTON SKU 59324.
About the Deutsch DT Series 2-Way Male Wedgelock Technical
The Deutsch DT Series 2-Way Male Wedgelock is the secondary locking wedge used with 2-way DT-series connector housings that carry pin (male) contacts. In the DT system, contacts are first retained by the housing’s integral fingers; the wedgelock then snaps into the face of the housing, backing up that retention and holding each size 16 contact in precise alignment with its mating half. This two-stage retention is central to the DT series’ vibration performance in vehicle and equipment wiring. The wedge is removable with simple tools, allowing contacts to be serviced and the wedge reused. This pattern corresponds to the industry part W2P, the green wedgelock used with the DT04-2P two-way receptacle; DT size 16 contacts are rated for 13 A continuous per contact.
Key specifications
| Connector system | Deutsch DT series (TE Connectivity) |
|---|---|
| Function | Secondary contact lock / alignment wedge |
| Positions | 2-way |
| Contact side | Pin (male) contacts, size 16 |
| Industry reference | W2P (for DT04-2P receptacle), green |
| Contact system rating | 13 A continuous per size 16 contact |
Typical applications
Completes 2-way DT connector assemblies in engine, chassis, off-highway and UAV/ground-equipment harnesses — typically two-wire circuits such as sensors, solenoids, lamps and small actuators operating in vibration-prone, weather-exposed locations.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
