Deutsch DT04-2P-C015 DT Series Receptacle, 2-Way, 16 AWG, Grey — BOLTON SKU 59323.
About the Deutsch DT04-2P-C015 DT Series Receptacl Connector

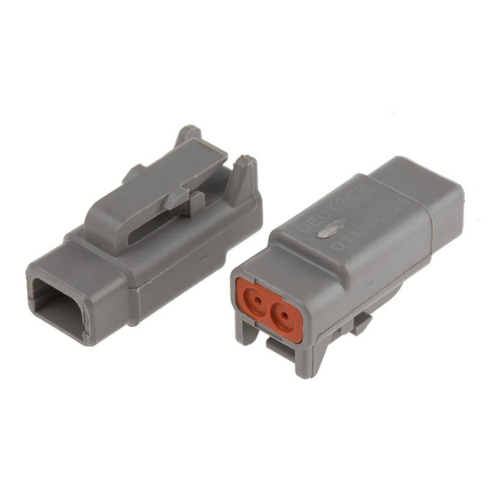

The Deutsch DT04-2P-C015 DT connector is the two-position receptacle housing of the DT range, supplied in grey and designated for 16 AWG conductors. The DEUTSCH DT series is an environmentally sealed thermoplastic connector family used in vehicle, industrial and defence wiring harnesses. DT04 identifies the receptacle half and P a housing that accepts pin contacts, so it mates with the two-way DT06-2S plug carrying socket contacts. This is the smallest DT footprint and the highest-volume size in the family, because a very large proportion of equipment wiring resolves to one supply and one return. A wedgelock is required to complete the assembly and is pressed into the mating face after both pins are loaded; if either contact is short of full engagement the wedgelock will not seat, giving the assembler an immediate check. Pin contacts and the two-way wedgelock are ordered separately from the housing.
Key specifications
| Series | DEUTSCH DT |
|---|---|
| Part number | DT04-2P-C015 |
| Housing type | Receptacle (DT04) |
| Positions | 2 |
| Contact gender accepted | Pin contacts |
| Conductor size | 16 AWG |
| Colour | Grey |
| Mates with | DT06-2S plug housing |
| Wedgelock | Required, ordered separately |
Typical applications
Two-way receptacles sit at the equipment end of single-circuit connections: work lamps, solenoid valves, electric pumps, horns and simple senders. They are the fitting most often cut off and replaced during field repair, so housings, pin contacts and wedgelocks in this size are standard spares-kit content. On generator sets, trailers and deployable shelters they also serve as the disconnect for accessory circuits that must tolerate washdown, dust and vibration.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
