PIXHAWK 6X (ICM-45686)-(SKU:11073) — BOLTON SKU 55329.
About the PIXHAWK 6X (ICM-45686)-(SKU:11073)

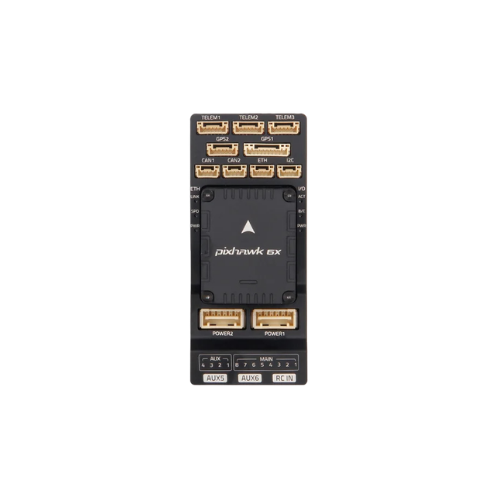

The Pixhawk 6X is Holybro’s implementation of the Pixhawk autopilot standard, built around an STM32H753 processor clocked up to 480 MHz. This variant carries three ICM-45686 inertial measurement units rated to plus or minus 32 g, using Holybro’s BalancedGyro arrangement, together with two barometric sensors. The design is modular: the IMU, FMU and Base sections are separate and connect through 100-pin and 50-pin Pixhawk Autopilot Bus connectors, which allows the flight controller to be paired with different baseboards. Sensor redundancy is implemented as fully isolated domains with separate buses and independent power control, and the IMU section sits on vibration isolation material chosen to place the resonance well above the airframe band. An Ethernet interface is provided for high-speed mission-computer integration. The board runs PX4 and ArduPilot firmware.
Key specifications
| Product | Holybro Pixhawk 6X autopilot flight controller module |
|---|---|
| Processor | STM32H753, clock up to 480 MHz |
| IMUs | 3 x ICM-45686, plus or minus 32 g, BalancedGyro arrangement |
| Barometers | 2 |
| Redundancy | Isolated sensor domains with separate buses and separate power control |
| Architecture | Modular IMU, FMU and Base linked by 100-pin and 50-pin Pixhawk Autopilot Bus connectors |
| Networking | Ethernet interface for mission computer integration |
| Firmware | PX4 and ArduPilot |
| Scope of supply | Flight controller module only; baseboard, GPS, cables and power modules separate |
Typical applications
Autopilot modules of this class are integrated into fixed-wing, multirotor, VTOL and unmanned ground platforms, and into airborne survey, inspection and payload-carrying systems. The Ethernet interface and modular bus make them suitable for builds that pair the autopilot with an onboard mission computer. UAV integration and MRO workshops also hold them as line-replaceable units for airframe fleets.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
