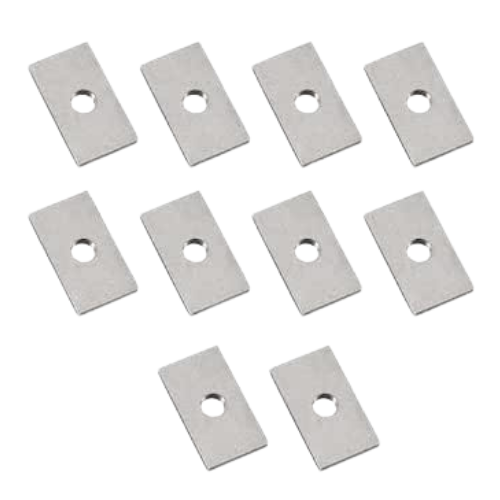

NUT,RECTANGULAR,M6,20X16X3.2MM,STL,CHR 304 STAINLESS STEEL — BOLTON SKU 64517.
About the NUT,RECTANGULAR,M6,20X16X3.2MM,STL,CHR 304 STAINLESS
This nut rectangular m6 20x16x3 2mm is a flat, four-sided nut measuring 20 mm by 16 mm with a thickness of 3.2 mm, tapped M6 through the plate and made in 304 stainless steel. A rectangular nut differs from a hexagon nut in how it is held: rather than being gripped by a spanner, its straight parallel sides bear against the walls of a slot, channel or machined recess, so the nut is restrained from turning by the surrounding structure and the fastener can be tightened entirely from the bolt head. The 3.2 mm plate thickness gives a short thread engagement compared with a standard M6 hexagon nut, so this form is chosen for its ability to sit flush in a shallow pocket or slide inside a profile rather than for maximum clamp capacity. The 304 grade is the general-purpose austenitic stainless steel, chosen for corrosion resistance and non-magnetic behaviour in the annealed condition.
Key specifications
| Attribute | Value |
|---|---|
| Nut form | Rectangular (flat plate) nut |
| Thread | M6 |
| Length x width | 20 x 16 mm |
| Thickness | 3.2 mm |
| Material | 304 stainless steel |
Typical applications
A 20 x 16 x 3.2 mm rectangular M6 nut is used where a captive or anti-rotation nut is needed inside a slotted extrusion, a channel section, a sheet-metal pocket or a blind cavity that a spanner cannot reach. It is common in framing and panel systems, enclosure and rack hardware, and equipment skids where fixings are adjusted along a slot. The 304 stainless material makes it appropriate for outdoor, humid and washdown installations.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Screws, Bolts, Nuts & Washers.
