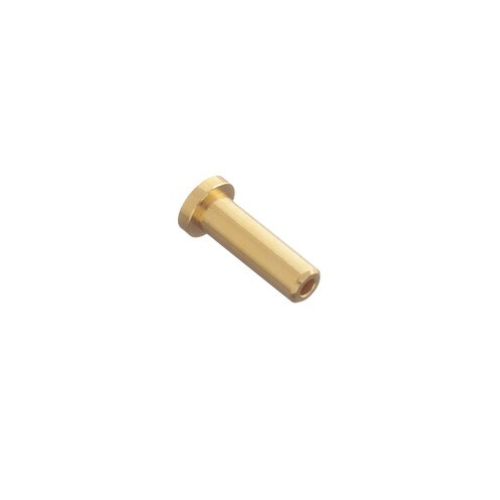

859-015Z2-16-24 Wire Barrel Reducer Bushing — BOLTON SKU 61201.
About the 859-015Z2-16-24 Wire Barrel Reducer Bushing
Glenair’s 859-015 is a small sleeve that is dropped into the wire barrel of an AS39029-type crimp contact before crimping, so that a contact sized for heavier wire can be terminated onto a thinner conductor. In this part number the Z2 is the gold-plated finish, the first size digit 16 is the contact wire barrel the bushing fits, and 24 is the wire size it then accommodates. Without a bushing a size 16 contact takes 16 to 20 AWG; with this bushing it takes 24 AWG. The body is copper alloy per AS39029, gold plated to ASTM B488 Type II Code C, 0.000050 in minimum, over nickel to AMS-QQ-N-290 Class 2. Operating temperature is −55 °C to +200 °C. Glenair references this size for use with M39029/29, /30, /56, /57, /58, /117, /118, /121 and /122 contacts.
Key specifications
| Manufacturer | Glenair |
|---|---|
| Basic part number | 859-015 |
| Finish code | Z2, gold plate |
| From (contact barrel size) | 16 |
| To (wire accommodation) | 24 AWG |
| Material | Copper alloy per AS39029 |
| Plating | Gold per ASTM B488 Type II Code C, 0.000050 in min, over nickel per AMS-QQ-N-290 Class 2 |
| Operating temperature | −55 °C to +200 °C |
| Bore diameter (øA) | 0.025–0.033 in (0.64–0.84 mm) |
| Body diameter (øB) | 0.062–0.066 in (1.57–1.68 mm) |
| Length (C max) | 0.199–0.204 in (5.05–5.18 mm) |
| Referenced contacts | M39029/29, /30, /56, /57, /58, /117, /118, /121, /122 |
Typical applications
The 859-015Z2-16-24 bushing wire barrel reducer is ordered when a harness design fixes the contact size — because the connector insert arrangement is already set — but a particular circuit only carries a 24 AWG conductor. Rather than accept a loose crimp, the bushing brings the barrel bore down to suit. Glenair’s own guidance is that the bushing must be fitted into the contact before crimping, that the crimp selector setting for the unbushed barrel wire size is retained, and that a shrink sleeve or potting may be needed for proper environmental sealing at the grommet.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
