Description

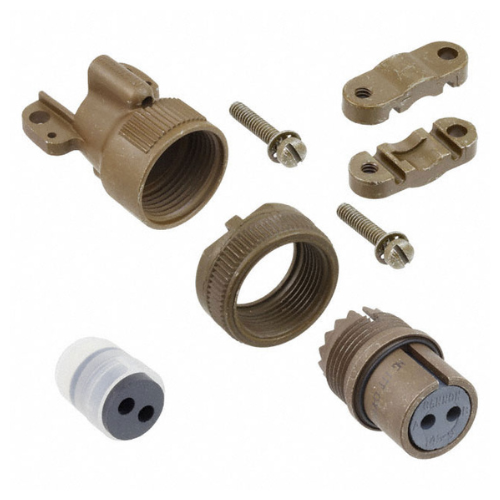

MS3106F14S-9S Connector, Plug, Straight including Endbell and cable clamp, Olive Drab Cadmium, Size 14S, 2#16 Socket Con — BOLTON SKU 59198.
About the MS3106F14S-9S Connector
The MS3106F14S-9S is a straight, cable-mounting circular plug in the MS3106 family built to MIL-DTL-5015. The F class is the environment-resistant version supplied with an end bell and strain-relief cable clamp. Shell size 14S carries insert arrangement 14S-9, which provides two contacts in size 16; the S suffix identifies socket contacts, terminated by solder. Distributor data for this part lists an aluminium alloy shell with olive drab chromate over cadmium plating, copper alloy contacts with silver plating and a neoprene insert, together with a threaded coupling. Published ratings for the arrangement include 13 A per contact, 500 V AC / 700 V DC service voltage and an operating range of -55 to +125 degrees C. MIL-DTL-5015 uses a single key and keyway for polarisation and is specified where vibration, moisture and temperature extremes are expected.
Key specifications
| Manufacturer part number | MS3106F14S-9S |
|---|---|
| Series | MS3106, MIL-DTL-5015 |
| Style | Straight plug, cable mounting, with end bell and cable clamp |
| Shell size | 14S |
| Insert arrangement | 14S-9 |
| Contacts | 2, size 16, socket |
| Termination | Solder |
| Shell finish | Olive drab chromate over cadmium |
| Contact rating | 13 A |
| Operating temperature | -55 °C to +125 °C |
Typical applications
Two-contact MIL-DTL-5015 plugs are typically used for power feeds, heater and actuator circuits, and simple two-wire interfaces on ground support equipment, vehicles, shelters and test sets. They are frequently replaced during harness overhaul in MRO workshops and are used in ground equipment supporting UAV and aerospace operations.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Circular / Rectangular Connectors.
