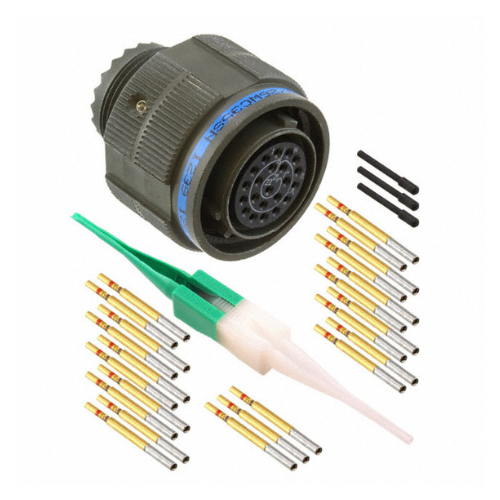

D38999/26WC35SNCircular MIL Spec Connector SHELL 13 22 PIN PLUG;CRIMP TERM — BOLTON SKU 68992.
About the D38999/26WC35SN Circular Connector
The D38999/26WC35SN is a MIL-DTL-38999 Series III connector. In the /26 slash sheet the part is a free-hanging straight plug: the W class denotes an aluminium shell with electroless nickel plating rated to +175 °C, C is shell size 13, 35 is the insert arrangement giving 22 contact cavities in size 22D, the S denotes socket contacts and N the normal key position. Termination is by crimp, so contacts are crimped to the conductor and inserted into the insert, and the connector mates by a triple-start thread that gives rapid, positive coupling with a defined mated position. Distributor data gives a nominal voltage rating of 400 V AC / 550 V DC and a current rating of 5 A per size 22D contact. Contacts and backshells are ordered separately.
Key specifications
| Specification | MIL-DTL-38999 Series III |
|---|---|
| Slash sheet / style | D38999/26 — straight plug, free hanging |
| Shell class | W — aluminium, electroless nickel plated |
| Shell size | 13 (code C) |
| Insert arrangement | 35 — 22 contacts, size 22D |
| Contact type | Crimp socket (S designator) |
| Key position | N (normal) |
| Coupling | Triple-start thread |
| Maximum operating temperature | +175 °C |
| Contact current rating | 5 A per size 22D contact |
Typical applications
MIL-DTL-38999 Series III connectors are the standard interconnect for aircraft, rotorcraft and ground-vehicle harnessing where vibration, moisture and EMI are design drivers. They are used on avionics and mission-system looms, sensor and actuator runs, UAV payload interfaces and test and ground-support equipment. MRO and harness shops hold them alongside matching crimp contacts, backshells and tooling.
