Mitutoyo 570-404 Height Gauge, 0-600mm — BOLTON SKU 50445.
About the Mitutoyo 570-404 Height Gauge 0-600mm

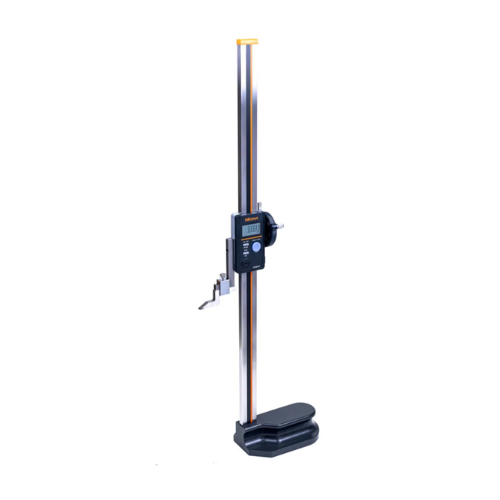

The Mitutoyo 570-404 Height technical component is listed by Mitutoyo as an ABSOLUTE Digimatic Height Gage with Slider Feed Wheel, covering a 0-600 mm measuring range. Two things define the instrument. ABSOLUTE means the scale holds its origin: the gauge does not have to be re-zeroed to the reference surface every time it is switched on, because the encoder reads absolute position rather than counting increments from power-up. The slider feed wheel gives controlled, fine movement of the carriage by hand, which is what allows a consistent measuring force to be applied when the scriber or probe is brought onto the workpiece — the main source of operator-to-operator variation on a height gauge. Resolution, accuracy and data-output specification are confirmed against Mitutoyo’s published series data for 570-404 at quotation.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer | Mitutoyo |
| Order number | 570-404 |
| Product family | ABSOLUTE Digimatic height gauge with slider feed wheel |
| Measuring range | 0-600 mm |
| Readout | ABSOLUTE digital (Digimatic) |
Typical applications
A 600 mm column is a surface-plate instrument for medium and large parts — measuring step heights, hole centres, flange and boss positions on machined housings, weldments and fabricated assemblies, and scribing layout lines before machining. The absolute scale suits inspection rooms where the gauge is switched on and off between jobs, and the feed wheel suits repeat measurement of the same feature across a batch. It is used on a granite or cast-iron surface plate; the plate flatness, not the gauge, sets the achievable accuracy of the setup.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Dimensional Layout Measurement.
