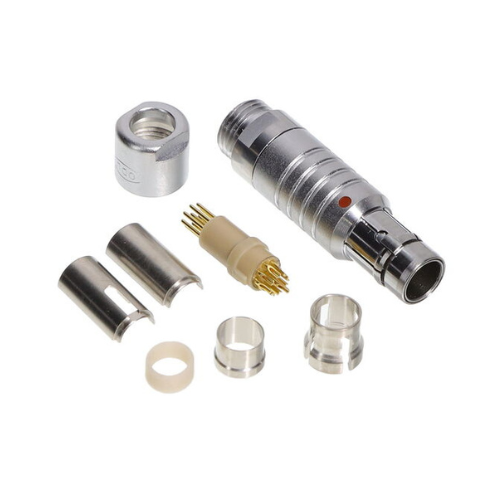

ODU MINI-SNAP Series B Straight Plug S30B0C-P09MCC0-5000 — BOLTON SKU 50769.
About the ODU MINI-SNAP Series B Straight Plug
This ODU MINI-SNAP Series connector is a straight cable plug in shell size 0, built around the push-pull latching principle that ODU uses across the MINI-SNAP family. The plug is wired with nine contacts in the pin (male) arrangement, each contact 0.5 mm in diameter, and each terminated in a solder cup of 0.4 mm termination diameter sized for AWG 28 conductor. Nominal current per contact is 4 A and the specified test voltage is 0.6 kV AC. Series B is ODU’s sealed metal-shell variant, rated to IP68 in the mated condition, with the coding groove and shell profile that prevent cross-mating between different keyings. Locking and release are by axial push-pull on the outer sleeve, which lets the connector be mated and separated one-handed in a confined harness run without tooling.
Key specifications
| Manufacturer part number | S30B0C-P09MCC0-5000 |
|---|---|
| Series | ODU MINI-SNAP Series B |
| Shell size | 0 |
| Contact arrangement | 9 contacts, pin (male) |
| Contact diameter | 0.5 mm |
| Termination | Solder cup, 0.4 mm, for AWG 28 |
| Nominal current per contact | 4 A |
| Test voltage | 0.6 kV AC |
| Locking | Push-pull |
| Sealing (Series B) | IP68 when mated |
Typical applications
A nine-way size 0 plug on AWG 28 solder terminations suits low-current signal, sensor and data interconnects where the cable bundle is thin and the panel space is tight. The IP68 sealing of Series B makes it a candidate for externally routed harnesses and equipment that is washed down or exposed to weather between uses. One-handed push-pull release is useful on assemblies that are broken down and re-mated frequently, such as portable instrumentation and removable sensor heads.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
