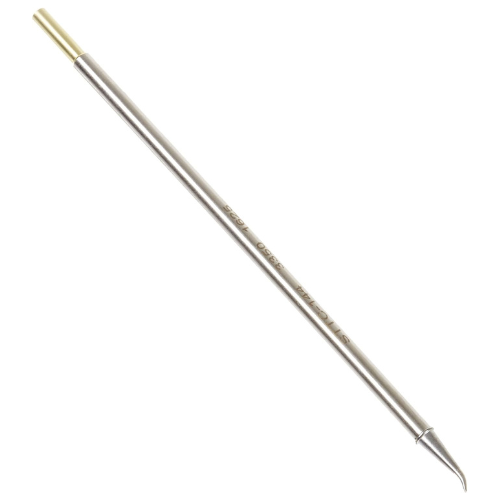

METCAL STTC-144 SERIES SOLDERING CARTRIDGE 775°F Maximum Tip Temperature, Conical Sharp Bent 30° Long Reach, 0.5mm Tip S — BOLTON SKU 50791.
About the STTC-144 Soldering Equipment
The METCAL STTC-144 is a soldering tip cartridge from Metcal’s STTC series, the standard cartridge family for the MX-500, MX-5000 and MX-5200 SmartHeat soldering and rework systems. The cartridge integrates tip and heater in a single replaceable unit, and SmartHeat technology self-regulates power against the thermal demand of each joint — there is no operator temperature setting or calibration. STTC-1xx part numbers belong to Metcal’s 700 series, nominally 390 °C, with a 775 °F maximum tip temperature stated in this product’s designation; Metcal recommends the 700 series for the majority of applications. The geometry here is a conical sharp tip, bent 30° with a long-reach form and a 0.5 mm tip size. Bent long-reach profiles are selected for joints in confined or recessed positions that a straight tip cannot address, while the fine 0.5 mm point suits small pads and discrete components. The cartridges work with leaded and lead-free solder.
Key specifications
| Type | Soldering tip cartridge |
|---|---|
| Series | Metcal STTC, 700 series (STTC-1xx) |
| Maximum tip temperature | 775 °F (per designation) |
| Nominal series temperature | 390 °C (700 series) |
| Tip geometry | Conical sharp, bent 30°, long reach |
| Tip size | 0.5 mm |
| Compatible systems | Metcal MX-500, MX-5000, MX-5200 series |
Typical applications
STTC cartridges are consumed on electronics production and rework benches, in avionics and UAV electronics assembly and in MRO workshops. Bent long-reach geometries are chosen where the joint sits in a confined position that a straight tip cannot reach, such as densely packed assemblies.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
