METCAL STTC 106 SOLDERING CARTRIDGE FOR MOST STANDARD APPLICATIONS 775°F Maximum Tip Temperature, Conical Sharp, 0.4mm T — BOLTON SKU 50792.
About the STTC 106 Soldering Equipment

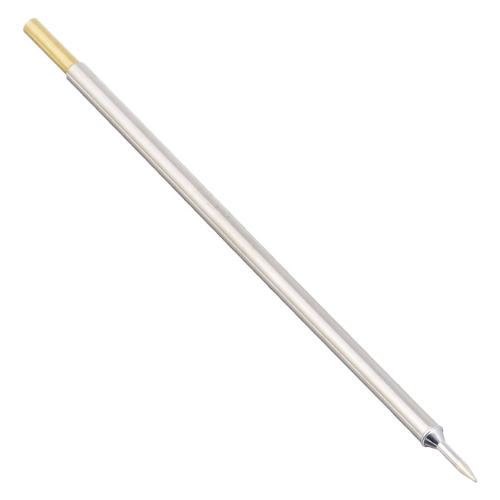

The METCAL STTC 106 (STTC-106) belongs to the 700 series of the STTC cartridge range, the middle temperature class at a nominal 390 °C and the one Metcal positions for the majority of soldering work; the product designation states a 775 °F maximum tip temperature. Its working face is a sharp conical point 0.4 mm across on a 13.7 mm tip length — a long, slender geometry that reaches into densely populated boards and lets the operator touch a single pad or lead without bridging neighbours. That reach and fineness come at the cost of thermal mass, which is why the 0.4 mm conical is a fine-pitch and touch-up tool rather than a heavy termination tool. The heater is integral to the cartridge, so temperature class and tip shape are selected together. Distributor listings give it for MX-500, MX-5000 and MX-5200 systems with the MX-RM3E or MX-H1-AV hand-piece.
Key specifications
| Type | Soldering tip cartridge |
|---|---|
| Series | Metcal STTC, 700 series (STTC-1xx) |
| Nominal series temperature | 390 °C |
| Maximum tip temperature | 775 °F (per Metcal product designation) |
| Tip geometry | Conical sharp |
| Tip size | 0.4 mm |
| Tip length | 13.7 mm |
| Intended use | Most standard soldering applications |
| Compatible systems | Metcal MX-500, MX-5000, MX-5200 |
| Compatible hand-pieces | MX-RM3E, MX-H1-AV |
Typical applications
A 0.4 mm sharp conical is the everyday cartridge for chip components, fine-pitch IC leads, connector pins on close centres and solder-bridge correction during inspection and rework. Repair benches handling avionics and UAV boards keep it loaded for touch-up passes, where the operator needs to see the joint and reach it without disturbing adjacent parts.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
