Description
Fluke 15B+ Digital Multimeter — BOLTON SKU 50799.
About the Fluke 15B+ Digital Multimeter

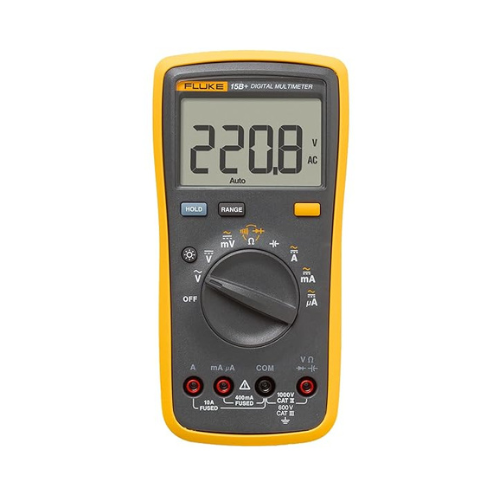

The Fluke 15B+ is a handheld digital multimeter with a 4000-count display that updates three times per second and carries a white backlight for work in poorly lit bays and risers. As Fluke 15B Digital test equipment it measures DC and AC voltage on 4 V, 40 V, 400 V and 1000 V ranges, quoted at 0.5% + 3 digits on DC and 1.0% + 3 digits on AC over 40 Hz to 500 Hz, and DC and AC current to 10 A at 1.5% + 3 digits. Resistance spans 400 ohm to 40 Mohm and capacitance 40 nF to 1000 uF, with diode test and an audible continuity function. Safety rating is CAT III 600 V at pollution degree 2, ingress protection is IP 40, and the operating range is 0 to 40 degrees C. It runs from two AA cells with a minimum 500 hours of battery life, and the instrument measures 183 x 91 x 49.5 mm and weighs 455 g.
Key specifications
| Display | 4000 counts, 3 updates/second, white backlight |
|---|---|
| DC voltage | 4 V / 40 V / 400 V / 1000 V, 0.5% + 3 |
| AC voltage | 4 V / 40 V / 400 V / 1000 V, 40-500 Hz, 1.0% + 3 |
| DC and AC current | to 10 A, 1.5% + 3 |
| Resistance | 400 ohm to 40 Mohm |
| Capacitance | 40 nF to 1000 uF |
| Other functions | Diode test, continuity |
| Safety rating | CAT III 600 V, pollution degree 2 |
| Ingress protection / operating temperature | IP 40, 0 to 40 degrees C |
| Power / size / weight | 2 x AA, min 500 h; 183 x 91 x 49.5 mm; 455 g |
Typical applications
A CAT III 600 V instrument of this specification is used for distribution-level electrical work: proving supplies dead, checking phase and control voltages in panels, and fault-finding on ground support and facility circuits. The 10 A current ranges and the resistance and continuity functions cover harness and loom checks, insulation-free continuity proving and component-level diagnosis on the bench. The IP 40 rating and 0 to 40 degrees C range place it as an indoor and sheltered-workshop instrument rather than an exposed outdoor one.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Electrical Test Multimeters.
