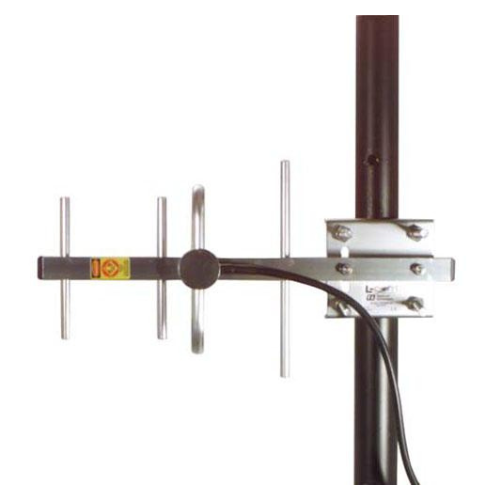

HG906YE 900 MHz 6 dBi Yagi Antenna — BOLTON SKU 53253.
About the HG906YE 900 MHz 6 dBi Yagi
The HG906YE 900 MHz antenna is a Yagi from the L-com HyperGain range, published by the manufacturer with an operating band of 824–960 MHz and a gain of 6 dBi. A Yagi is a directional array: instead of radiating evenly in all directions like an omni, it concentrates energy along its boom axis, so the same transmitter reaches further in one direction and rejects interference arriving from others. That directivity is what the 6 dBi figure describes. The 824–960 MHz band spans the 900 MHz ISM allocation together with adjacent cellular spectrum, which is why the same antenna appears in both licensed and unlicensed link designs. The HG906YE is offered in several connector terminations, identified by a suffix on the base part number — for example HG906YE-NF for the N-type female version — so the required termination should be stated on the enquiry.
Key specifications
| Series | L-com HyperGain HG906YE |
|---|---|
| Antenna type | Yagi (directional) |
| Frequency range | 824–960 MHz |
| Gain | 6 dBi |
| Connector | Variant-dependent; suffixed part numbers (e.g. HG906YE-NF, N-type female) |
Typical applications
A 6 dBi Yagi in the 900 MHz band is typically used for short to medium range directional links — point-to-point and point-to-multipoint data radios, SCADA and telemetry backhaul, remote sensor and metering networks, and fixed links where a modest gain increase and front-to-back rejection are needed without the size of a high-gain array. Because the pattern is directional, the antenna must be aimed at its counterpart; it is not a substitute for an omni on a roaming or multi-direction node.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
