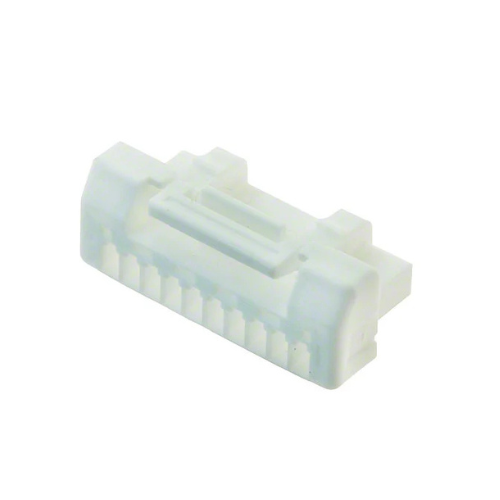

5023801000 Rectangular Plug Housing, 1.25 mm, 10-Way, Natural — BOLTON SKU 53812.
About the 5023801000 Rectangular Plug Housing, 1.2 Rectangular
This is the plug half of a rectangular connector pair — the free, cable-end housing that carries crimp contacts and mates into the fixed header. It is supplied as an empty moulding: the contacts are separate parts, crimped to the wires and then inserted into the cavities. The 5023801000 Plug Housing rectangular connector uses a 1.25 mm pitch, which is fine-pitch territory. That spacing is chosen when board real estate is scarce, and it comes with consequences the assembler has to plan for — cavities and contacts are small, insertion is fiddly, and contact retention depends on the crimp being formed correctly with the specified tooling. Ten ways on a 1.25 mm pitch keeps a ten-circuit interface within a very narrow footprint. The housing is moulded in natural, the uncoloured form of the resin. Confirm the matching header and the correct crimp contact reference on your RFQ.
Key specifications
| Part number | 5023801000 |
|---|---|
| Type | Rectangular plug housing |
| Pitch | 1.25 mm |
| Number of ways | 10 |
| Colour | Natural |
Typical applications
Ten-way fine-pitch plug housings serve multi-signal wire-to-board interfaces inside compact equipment — display and sensor ribbons, control and interface headers on small PCBs, and sub-assembly looms where a single connector must carry a group of low-current signals. The 1.25 mm spacing suits densely populated boards in handheld, avionics-bay and instrument enclosures. Because ten circuits pass through one moulding, keep the wire sequence controlled against a documented pinout during build.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
